| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 1827121C2 |

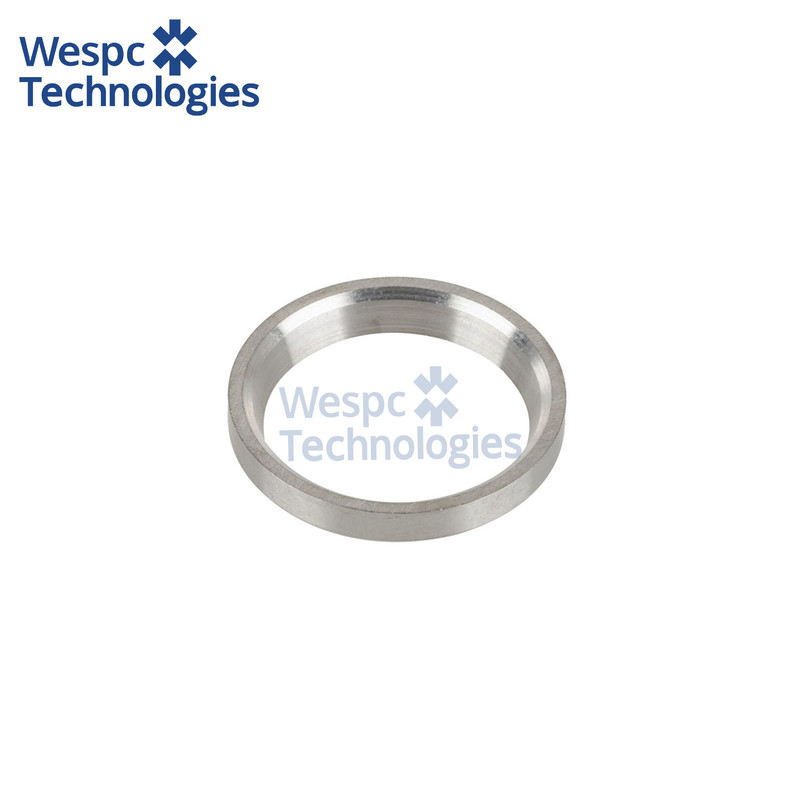

WESPC Valve Seat Inlet 1827121C2 For Navistar Perkins DT466E DT530E HEUI Engines
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
1827121C2 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
The inlet seat 1827121C2 is specified for Navistar DT466E & DT530E HEUI engines (7.6 L & 8.7 L) and is also catalogued for Perkins 1306C-E87TAG and 1506A-E88TAG series. It is therefore found in Class-6/7 haulers, school buses, 150-300 kVA generator sets, wheel loaders, motor graders and farm tractors that use the same cylinder-head machining.
Technical specifications:
OD 2.0010 in (50.83 mm), depth 0.3560 in (9.04 mm), 30° seat angle, 1.712 in throat ID; interference fit 0.002-0.004 in for cast-iron heads. The 1.870 in top taper blends into the throat to give a 1.8 mm seating width that resists recession under 2.2 bar boost and 750 °C inlet temperature while maintaining airflow for EGR-equipped builds.
Material & performance features:
Vacuum-sintered Co-Cr-Mo steel (≥50 HRC) with 30 % Cr, 1.2 % Mo, 0.8 % V; plasma-nitrided to 0.05 mm depth for 950 HV surface hardness while the core remains tough enough to absorb valve impact. A 0.4 µm Ra finish beds in within 15 min, and the alloy resists low-sulphur diesel, biodiesel and 20 % HVO, giving >12 000 h service before re-cut.
Interchange part numbers:
Navistar 1827121, 1827121C1, Mack 4333-1827121C2, Interstate-McBee M-1827121C2, PAI 491916, SB2001E-2 and 30-2001E-2.
