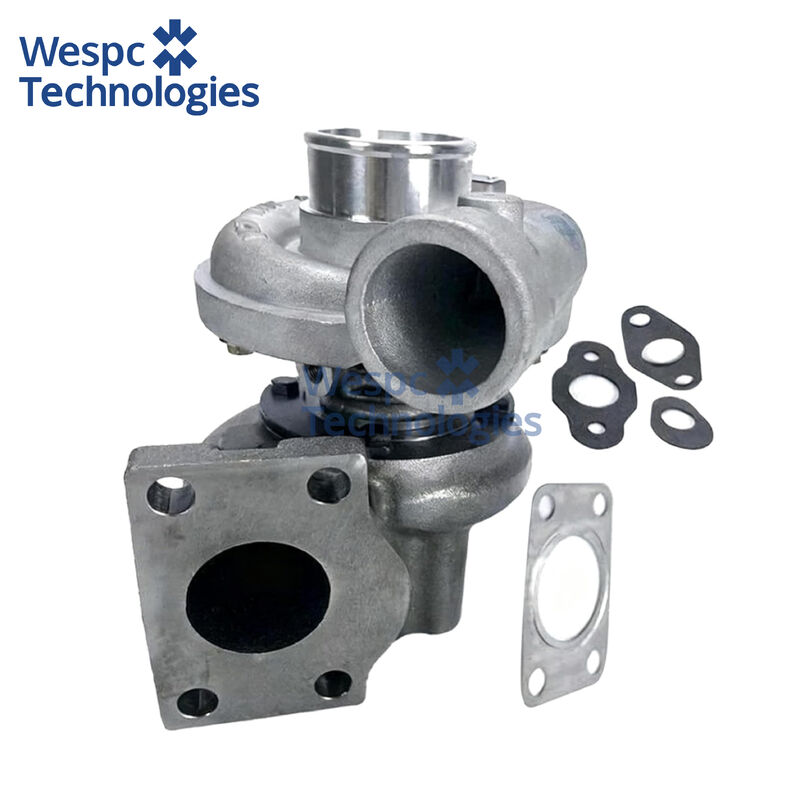

WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s

Brand Name:	WESPC
Model Number:	2674A441
MOQ:	1
Price:	U$199-189(1pcs)
Packaging Details:	Carton
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS,ISO9001

Product Name:

Turbocharger

Material:

Steel

Condition:

100%new

Place Of Origin:

Guangdong, China

Accuracy:

OEM High Quality

Warranty:

1year

Supply Ability:

In Stock

Highlight:

Perkins 1103A turbocharger

Perkins 33TG1 turbo with warranty

3.3L engine turbo GT2049S

Product Description

WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s

Brand Name	WESPC
Product Name	Turbocharger
Part Number	2674A423
Material	Metal
Marketing Type	Ordinary Product
Certificate	ISO9001
Warranty	1 year
Stock	Yes

Application
The WESPC 2674A423 turbo is built for Perkins 1103A-33T, 1103A-33TG1, 1103C-33T 3.3 L three-cylinder diesels and the equivalent FG Wilson P13-5 → P22-5 generator ends.It is therefore fitted to Cat 301.6–302.4 mini-excavators, JCB 8025-8026, Liu-Gong 906/908 diggers, Manitou forklifts and 55–75 kVA industrial gen-sets—one turbo covers agricultural, construction and power-generation fleets worldwide.

Technical specifications
GT2049S frame; compressor wheel OD 49 mm, turbine wheel OD 46 mm; total length 290 mm, body diameter 200 mm, weight 7.3 kg; oil inlet M12 × 1.5, oil drain 2 × M8 on 38 mm PCD; water connections 2 × M10; maximum continuous boost 2.0 bar, peak turbo speed 180000 rpm, exhaust gas temperature limit 750 °C.

Material & performance features
Turbine housing cast from Ni-Resist ductile iron for 750 °C fatigue strength; compressor wheel milled from 7075-T6 aluminium,hard-anodised to 50 HV for salt-spray resistance; shaft is 42CrMo vacuum-nitrided to 900 HV, running on brass floating-bush bearings with 0.12 mm oil film for >8 000 h service before rebuild; water-cooled centre housing eliminates oil coking during hot-shutdown, keeping oil temperature <120 °C at 45 °C ambient; every unit is spin-balanced to <0.5 g-mm, giving <72 dB(A) noise and zero shaft vibration throughout the 1 400–2 200 rpm engine speed range.

Interchange part numbers
2674A422, 754111-0008, 754111-0009, 754111-8, 754111-9,10000-06394, KRP1695
