| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 3142H041 |

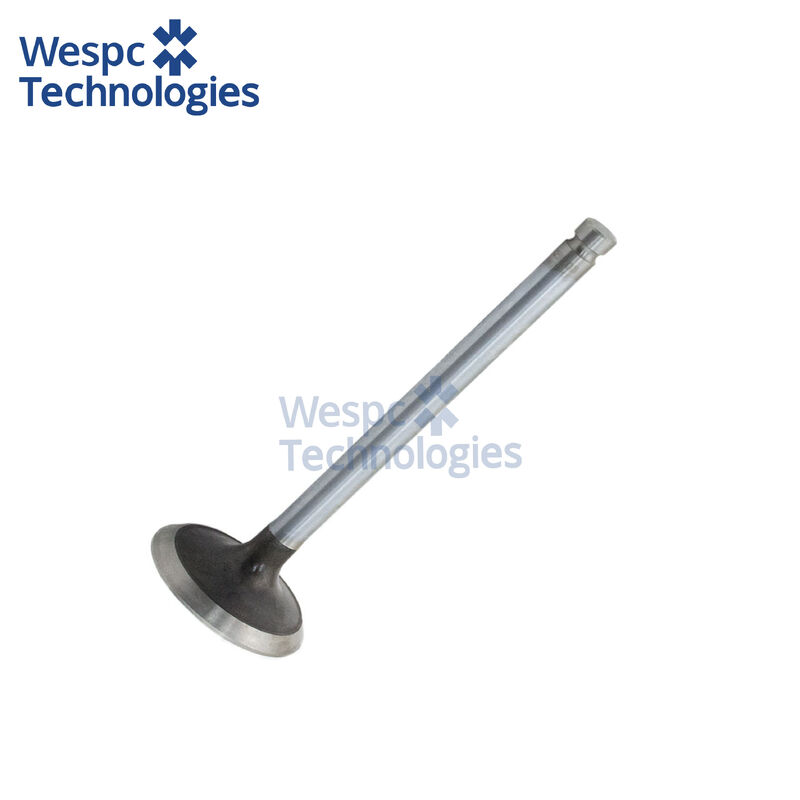

WESPC Intake Valve 3142H041 for Perkins four cylinder diesel engines
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
3142H041 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Perkins 1004-42, N4.421, and 1004.42 series four-cylinder diesel engines (4.2 L displacement) used extensively in agricultural and construction equipment. This intake valve controls airflow into the combustion chamber in moderate-duty diesel applications. Commonly found in Massey Ferguson tractors including models 2230, 286 Gold Series, 394AP(X), 394FP(X), 394GE(X), 394SP(X), 3235AP(X), 3235FP(X), 3235GE(X), 3235SP(X), 3340, 3340F/FE, 3340GE, 3340S, 3340V, 4235 (USA), 4235HV (USA), 4335, and 4335HV.
Technical specifications:
Valve type: Intake (suction) valve for four-stroke diesel engines
Head diameter: 45.0 mm (1.772 inches)
Stem diameter: 8.9-9.0 mm (0.350-0.354 inches)
Overall length: 123-124 mm (4.843-4.882 inches)
Seat angle: 45° precision-ground sealing face
Stem type: Single-groove for split collet retention (7° collet angle)
Tip configuration: Induction-hardened to resist wear from rocker arm contact
Weight: 0.1-0.5 kg per valve (depending on packaging)
Quantity per engine: 4 pieces for 1004.42 series (4-cylinder)
Material & performance features:
Manufactured from high-alloy heat-resistant steel containing 0.35-0.45% carbon, 1.5-2.5% chromium, with additions of manganese and silicon for enhanced high-temperature strength and wear resistance . The valve head undergoes solution treatment at 1,050-1,100°C followed by age-hardening to achieve 25-30 HRC hardness, maintaining structural integrity at intake air temperatures up to 200°C in turbocharged applications.The stem receives gas nitriding treatment creating a 0.02-0.04 mm deep surface layer exceeding 700 HV hardness to resist scuffing during prolonged operation. The 45° seat angle is precision-machined to Ra 0.4-0.8 µm finish, ensuring positive sealing with the valve seat insert (3314A061, 3314A101, or 3314A102) and preventing intake air leakage and compression loss. The tip is induction-hardened to 50-55 HRC to resist cupping under 800-1,000 N valve spring loads.ISO9001 and TS16949 certified production ensures dimensional accuracy within ±0.01 mm on stem diameter and ±0.05 mm on overall length.
Interchange part numbers:
PERKINS 3142H041 (primary OEM specification)
Massey Ferguson 4222952M1 (tractor application)
Cater 176-3134 (Cater cross-reference)
Maxiforce VTK422 valve train kit (includes 3142H041 intake valves)
Heavy Duty Pros 3142H041 (aftermarket brand)
KMP Brand 3142H041 (warranty-backed aftermarket)
Venus Engine Parts 3142H041 (ISO-certified manufacturer)
CAM-Agri Parts 3142H041 (European aftermarket)
