WESPC Valve Guide 3313A012/3318A705 for Perkins Six Cylinder Diesel Engines
Precision valve guides designed for optimal performance in Perkins diesel engines, providing reliable valve alignment and controlled lubrication.
| Brand Name |
WESPC |
| Place of Origin |
China |
| Part Number |
3313A012/3318A705 |
| After-sales Service |
Video Technical Support, Online Support |
| Marketing Type |
Ordinary Product |
| Certificate |
ISO9001 |
| Warranty |
1 Year |
| Stock |
Yes |
Application Details

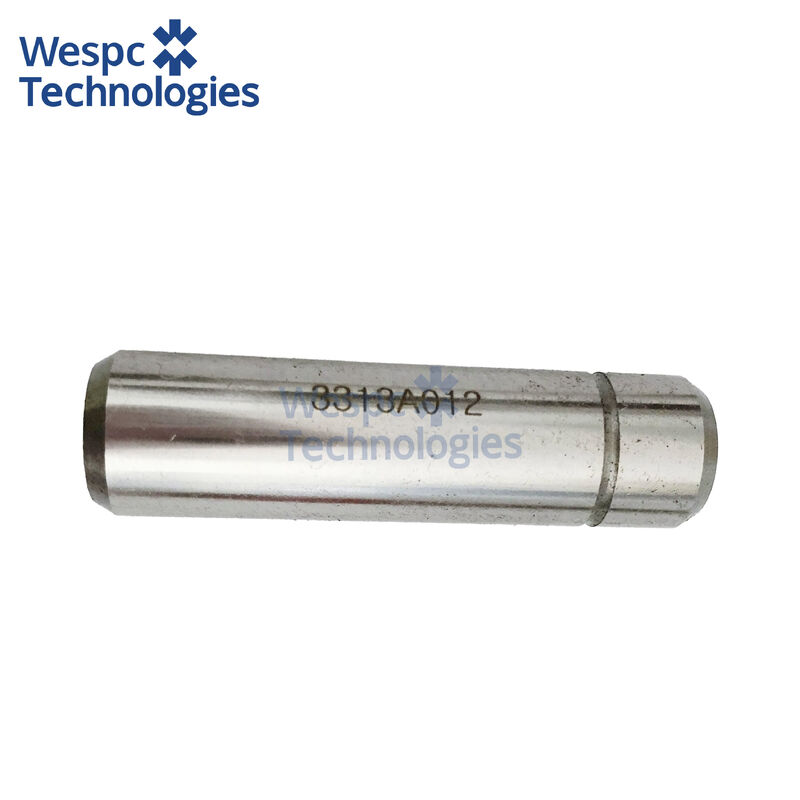

3313A012 - Intake Valve Guide
Designed for Perkins 1004-40T, 1004-42, 1103, 1104C-44TA, 1106C-E60TA diesel engines (4-cylinder and 6-cylinder configurations). Provides precision alignment and controlled lubrication for intake valves in moderate-duty diesel applications. Each four-cylinder engine requires 4 intake guides; each six-cylinder engine requires 6 intake guides. Commonly deployed in Massey Ferguson 3000 and 4000 series tractors, JCB telehandlers and backhoe loaders, Cater C4.4 industrial engines, and FG Wilson generator sets.
3318A705 - Exhaust Valve Guide
Engineered for higher temperature operation with exhaust valves in Perkins 1006.6, 1006.6T, 1104C-44TA, 1106C-E60TA diesel engines. Each four-cylinder engine requires 4 exhaust guides; each six-cylinder engine requires 6 exhaust guides. Used in the same equipment families as 3313A012 but specifically for exhaust valve positions.
Technical Specifications
3313A012 (Intake)
- Outer diameter (large end): 13.30 mm (0.524 inches)
- Inner diameter (valve stem bore): 8.95-9.00 mm (0.352-0.354 inches) for 9.0mm intake valve stems
- Overall length: 46.40 mm (1.827 inches)
- Installation method: Press-fit into cylinder head with H7/p6 interference fit (0.03-0.08 mm interference)
- Material thickness: Varies from 1.15-2.15 mm along length
- Surface finish: Inner bore Ra 0.4-0.8 µm after honing
- Lubrication clearance with valve stem: 0.04-0.06 mm for intake valves
3318A705 (Exhaust)
- Outer diameter (large end): 14.50-15.00 mm (0.571-0.591 inches) - larger than intake guide for heat dissipation
- Inner diameter (valve stem bore): 8.95-9.00 mm (0.352-0.354 inches) for 9.0mm exhaust valve stems
- Overall length: 48.00-50.00 mm (1.890-1.969 inches) - longer than intake guide
- Installation method: Press-fit with H7/p6 interference fit (0.03-0.08 mm interference)
- Material thickness: Thicker wall than intake guide for better heat transfer
- Surface finish: Inner bore Ra 0.4-0.8 µm after honing
- Lubrication clearance with valve stem: 0.05-0.07 mm for exhaust valves (slightly larger due to higher operating temperatures)
Material & Performance Features
Both guides are manufactured from 16MnCr5 case-hardening steel (European standard alloy steel) or sintered iron alloy depending on supplier. The material provides 900-1,100 MPa tensile strength and excellent wear resistance for continuous valve stem movement at engine speeds up to 2,200 rpm.
The intake guide receives case-hardening treatment to achieve 55-60 HRC at the outer surface for wear resistance in the cylinder head bore, while maintaining a ductile core (28-32 HRC) to resist fracture. The inner bore is precision-honed after installation to achieve cross-hatch pattern at 45-60° angle with 0.0002-0.0004 inch depth, ensuring optimal oil retention and controlled lubrication.
Interchange Part Numbers
3313A012 (Intake)
Primary OEM: 3313A012
Perkins applications: 1004-40T, 1004-42, 1103, 1104, 1106, 1006.6
Cater cross: For C4.4 engines
Aftermarket suppliers: KMP Brand, Diesel Parts Direct, Heavy Duty Pros
Packaging: Often sold individually or in sets of 4, 6, or 8 pieces
3318A705 (Exhaust)
Primary OEM: 3318A705
Perkins applications: 1004-40T, 1004-42, 1104C-44TA, 1106C-E60TA, 1006.6, 1006.6T
Aftermarket suppliers: KMP Brand, Agriline Products, Heavy Duty Pros
Related part: Sometimes referenced with "Valve Guide, Exhaust" designation
