| ชื่อแบรนด์: | WESPC |
| หมายเลขรุ่น: | 3142D041 |
| ขั้นต่ำ: | 10 |
| ราคา: | $6-$8(1 Piece) |
| รายละเอียดบรรจุภัณฑ์: | กล่องกระดาษ |
| เงื่อนไขการชำระเงิน: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

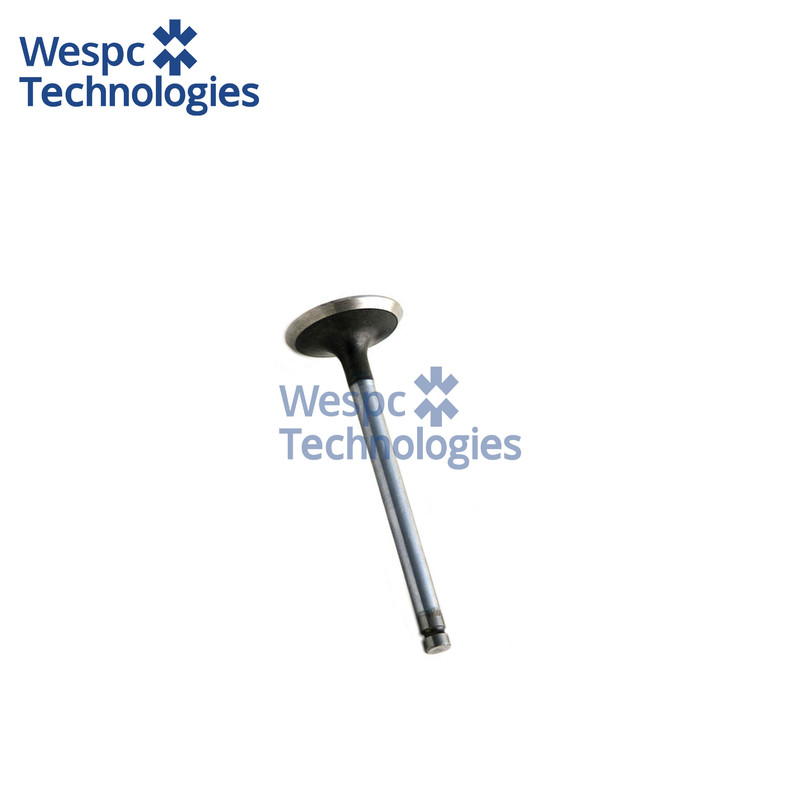

WESPC Intake Valve 3142D041 For Perkins 1004-40T 1006-60T T6.601 CCW6.601
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
3142D041 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
This intake valve is engineered for the Perkins 1004-40T, 1006-60T, T6.601 and CCW6.601 naturally-aspirated and turbo-charged diesels, which means it is installed in Massey Ferguson 5460, 6460, 6470, 7480 and 7490 tractors, 7270 and 7280 combines, Landini 8860 and 9880 row-crop tractors, JCB 530-70 Loadall, 3CX/4CX back-hoe loaders, Atlas-Copco XAS186 and Doosan G50W portable compressors, FG-Wilson P110-4 and P135-4 generator sets and a broad spread of Bobcat T2556 Turbo, T3093 skid-steer loaders that use the above 4.0-litre engine family worldwide.
Technical specifications:
The valve head is 42.9 mm in diameter, seat angle 45°, overall length 122.9 mm and stem diameter 8.9 mm; the stem tip is induction-hardened to 52-58 HRC while the lower stem carries a gas-nitrided layer 0.03-0.05 mm thick giving a surface hardness > 850 HV to resist scuffing during prolonged high-boost operation typical of the 1006-60T engine. Head and stem are CNC-finished to Ra 0.2 µm to guarantee positive sealing and uniform heat transfer every cycle.
Material & performance features:
Hot-forged from 21-4N (5Cr21Mn9Ni4N) austenitic steel that retains 900 MPa tensile strength at 700 °C, the head is flash-chrome plated (≈3 µm) to cut friction and valve-guide wear while the nitride layer on the stem prevents micro-welding and maintains stable lash over thousands of hours in stop-start field service; the tulip profile is swirl-polished to improve flow co-efficient and reduce pumping losses, giving cleaner combustion and lower fuel consumption across the 1004/1006 engine map.
Interchange part numbers:
Perkins 3142D041; Massey Ferguson 4222894M1; JCB 333/E0001; Landini 4222894M91; Bobcat 1382052; Vapormatic VPA1027; AE 20947; Mahle 043VE30834000; Bepco BV3142D041; Maxiforce MV-3142D041; SBI 01786.
