| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 4132A014M1 |

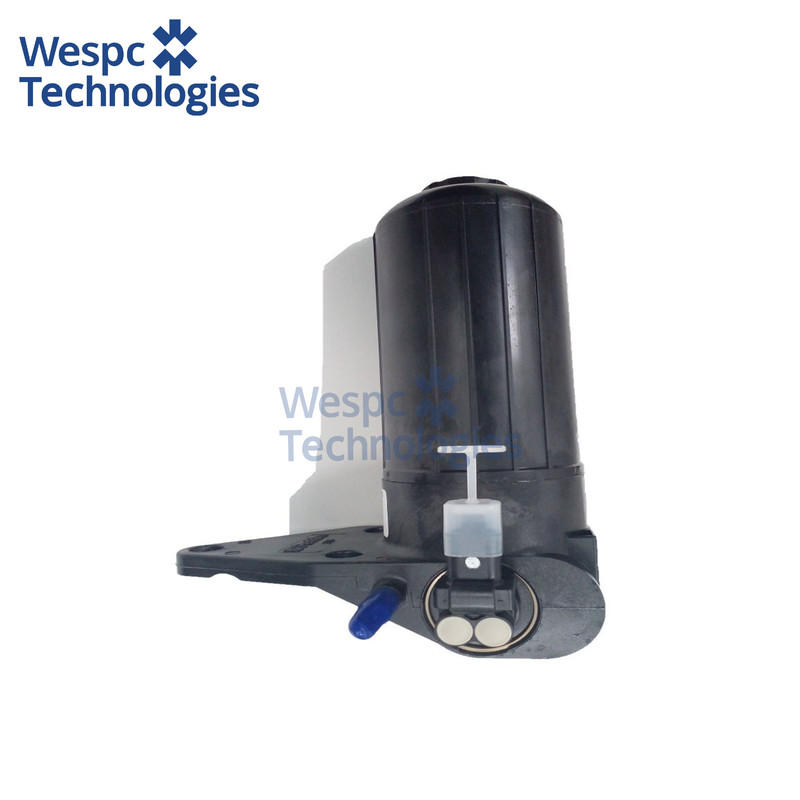

WESPC Diesel Engine 4132A014M1 Fuel Lift Pump For Perkins Engine Parts
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
4132A014M1 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
4132A014M1 is the low-pressure fuel lift pump that feeds Perkins 1004-4, 1004-4T and 1004-4TW engines (4.0 L, 4-cylinder) installed in Massey Ferguson 6400- and 8200-series tractors, Landini Legend 105/115 row-crop machines, JCB 4CX backhoe loaders and 535-95 telehandlers, plus FG Wilson P18-6 and Pramac GSW85P generator sets. It mounts on the left-hand side of the timing gear cover and draws fuel from the tank to the injection pump at rated engine speeds of 800–2 400 r/min.
Technical specifications:
The pump body is a cast-aluminium single-stage diaphragm type with integral hand-priming lever. Nominal flow is 120 L/h at 400 kPa and 2 000 r/min, inlet/outlet ports are 8 mm hose-barb fittings, and the mounting flange is SAE J744 size 1 with two M8 threaded holes on 60 mm centres. Diaphragm diameter is 80 mm, stroke 5.5 mm, and the actuating lever is driven by the engine camshaft through a hardened eccentric. All gaskets and seals are FKM (Viton) for biodiesel compatibility up to B20 and for operation down to −40 °C.
Material & performance features:
The die-cast aluminium housing is powder-coated for corrosion resistance; the diaphragm is multi-layer fabric-reinforced nitrile rubber with PTFE facing for low swell and long flex life. The actuating lever and push-rod are induction-hardened medium-carbon steel, while the internal spring is stainless steel for anti-stick performance in high-humidity environments. A spring-loaded bypass valve prevents over-pressure and cavitation, and a transparent sediment bowl with replaceable paper element filters particles down to 80 µm. Lightweight construction, low noise signature and maintenance-free sealed bearings make the unit ideal for continuous-duty service.
Interchange part numbers:
PERKINS 4132A014M1, 4132A015M1; MASSEY FERGUSON 3638721M91, 3638722M91; LANDINI 747602M91, 747603M91; JCB 331/20281, 331/20282; FG WILSON 10000-45220; PRAMAC 6000-45220; reference equivalent to 1-12320-750-0 and 04279-0L100 assemblies.
