| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | U5MK1088 |

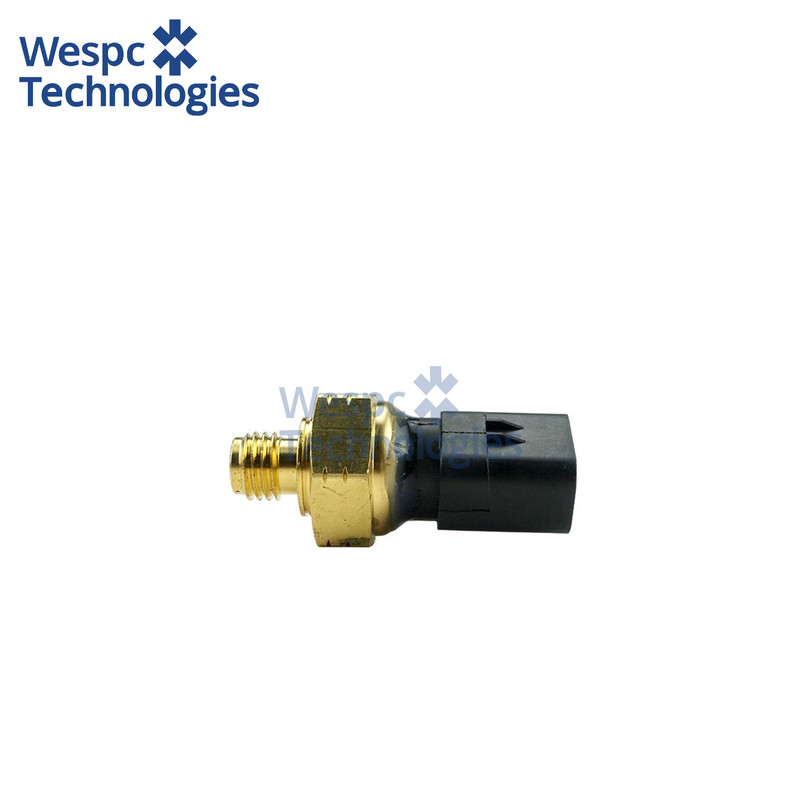

WESPC Oil Pressure Sensor U5MK1088 For Perkins Engine 1104D 1106D Engine Parts
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
U5MK1088 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a three-wire piezo-resistive pressure transducer housed in a brass body with a 1/8" NPTF male thread and 19 mm hex. It measures 0–10 bar (0–145 psi) with ±2 % full-scale accuracy, outputs a linear 0.5–4.5 V signal referenced to a 5 V supply and draws <10 mA at 12 V. Operating temperature spans –40 °C to +125 °C and the sensor withstands 1 000 h salt-spray exposure per ASTM B117.
Material & performance features:
The sensing diaphragm is 17-4 PH stainless steel, laser-welded to the brass body for absolute hermetic sealing and protected by a sintered brass snubber that damps pressure pulsations and prevents oil-borne debris from reaching the element. Internal circuitry is over-moulded in high-temperature PPS resin, achieving IP67 ingress protection and surviving 500 thermal-shock cycles from –40 °C to +125 °C without calibration drift.
Interchange part numbers:
U5MK1088, 274-6717, 2746717, 161-9926, 194-6725, 904-7030, 2874A021, 10000-05792, 5I-7570, 185-2462, 185-2463, 185-2464, 185-2465, 185-2466, 185-2467, 185-2468, 185-2469, 185-2470, 185-2471, 185-2472, 185-2473, 185-2474, 185-2475, 185-2476, 185-2477, 185-2478, 185-2479, 185-2480.
