| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 1846481C92 |

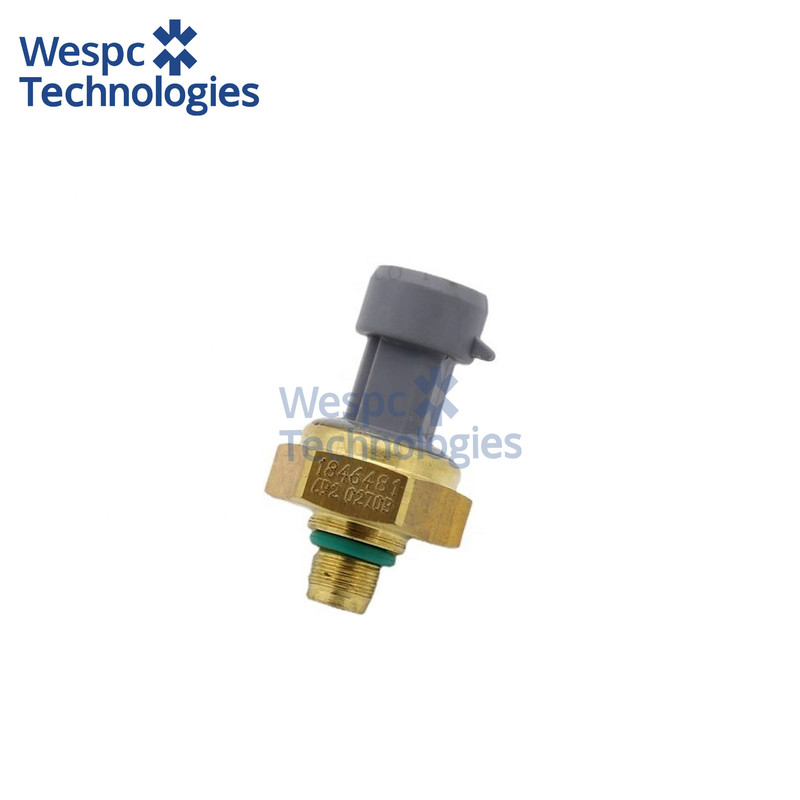

WESPC Fuel Pressure Sensor 1846481C92 For Navistar DT466E DT530E I530E DT466 7.3 L
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
1846481C92 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Fuel Pressure Sensor 1846481C92 is a heavy-duty intake-manifold absolute-pressure (MAP) sender that also serves as the primary fuel-rail pressure transducer on International / Navistar DT466E, DT530E, I530E, DT466 7.3 L and DT466 6.0 L turbo-diesel engines. These power units are widely found in Massey Ferguson 8100 series high-horsepower tractors, large-capacity combine harvesters, 150-350 kVA generator sets, plus Class-6/7 delivery trucks, school buses and vocational machines operating in both agricultural and on-highway environments worldwide.
Technical specifications:
Thread interface 1/8-27 NPT male with 19 mm hex and 12 mm probe reach for direct installation into the intake manifold or high-pressure fuel rail. Operating pressure range 0–5 bar (0–72 psi) absolute, output signal 0.5–4.5 Vdc ratiometric across the scale, supply voltage 5 ± 0.25 Vdc, accuracy ±1.5 % F.S. Connector is a sealed 3-pin Packard Metri-Pack 150.2, IP67 rated, overall sensor length 45 mm, weight 56 g.
Material & performance features:
Housing is precision-turned from brass alloy and nickel-plated for total immunity to diesel fuel, engine oil and road salt; the sensing capsule is a laser-welded 1.4571 (AISI 316Ti) stainless-steel diaphragm with thin-film strain gauges for excellent long-term stability.
Interchange part numbers:
1846481C92, 1846481C93, 10000-18464, 4224850M1, 4222217M1, 2755A031.
