WESPC Wiring Harness 342-2886 For 374D 374DL 390D class hydraulic excavators

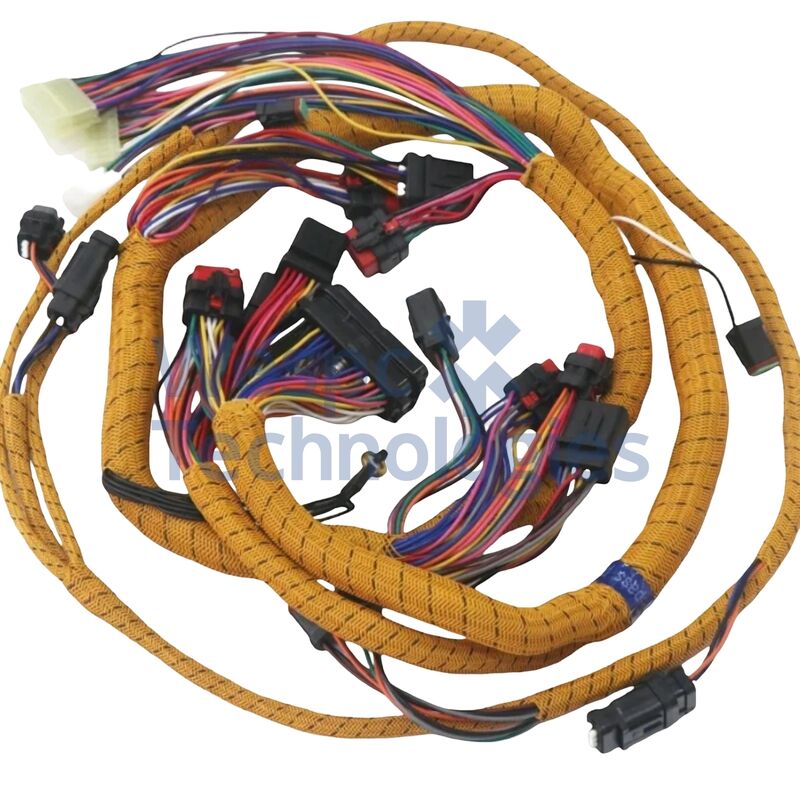

The 342-2886 Wiring Harness functions as a Chassis/Cab Platform Wiring Harness specifically engineered for 70-ton class hydraulic excavator platforms. This harness serves as the primary electrical backbone connecting the operator cab to the main chassis and platform systems, facilitating comprehensive power distribution and signal transmission between critical machine components.

It is extensively utilized across multiple heavy-duty excavation equipment configurations, including standard excavator models and long boom variants. The harness is compatible with machines powered by 15.2-liter displacement diesel engines featuring six-cylinder inline configurations with turbocharging and air-to-air aftercooling technology, supporting the electrical infrastructure for main hydraulic control systems, chassis-mounted sensors, travel motors, swing mechanisms, instrument panel connectivity, cab lighting, HVAC controls, and auxiliary equipment.

• Harness Type: Chassis/Cab Platform Main Wiring Harness
• Compatible Equipment: 374D, 374DL, and 390D class hydraulic excavators
• Engine Compatibility: 15.2-liter displacement inline 6-cylinder diesel engines with turbocharging and air-to-air aftercooling (TA)
• Voltage Rating: 24V DC heavy-duty construction and mining equipment electrical systems
• Conductor Material: Pure copper multi-strand wire core with tin plating certification
• Connector Systems: Multi-pin configurations utilizing Deutsch, Molex, AMP, and JAE terminal technologies with precision-molded housings
• Wire Gauge: Automotive-grade multi-strand copper conductors (typically 18 AWG for signal circuits, heavier gauge for power distribution)
• Insulation Materials: High-quality rubber, silicone, or thermoplastic elastomer (TPE) compounds rated for heavy equipment applications
• Protection Rating: IP67-rated sealed connectors providing protection against dust, moisture, and hydraulic fluid ingress
• Temperature Performance: Operating range from -30°C to +85°C, resistant to thermal cycling and extreme temperature differentials
• Harness Architecture: Multi-conductor bundles with strategic branching points for connection to hydraulic valve solenoids, pressure sensors, and monitoring systems
• Electrical Testing: 100% electrical continuity testing and power performance verification before dispatch
• Physical Dimensions: Approximately 150 cm × 30 cm × 15 cm (varies by specific routing configuration)
• Weight: Approximately 5.0-6.0 kg depending on cable length and specific configuration

The wiring harness is manufactured utilizing premium-grade cable materials certified to international quality standards, ensuring exceptional electrical safety and performance consistency. Conductors feature high-purity oxygen-free copper with precision tin plating, delivering superior electrical conductivity and corrosion resistance in harsh operating environments exposed to hydraulic fluids, diesel spillage, abrasion, and weather elements.

The harness features advanced insulation materials including heat-resistant rubber compounds and thermoplastic elastomers, providing exceptional resistance to abrasion, chemical exposure, hydraulic fluids, and extreme temperature fluctuations. Connector housings are constructed from high-impact resistant engineering polymers with silicone rubber seals, ensuring reliable moisture and dust protection under severe duty cycles.

The harness undergoes rigorous 100% electrical continuity testing and power performance verification before dispatch, guaranteeing reliable signal transmission under high-vibration conditions typical of mining and heavy earthmoving operations. Cable bundling features high-strength wrapping and protective sleeving with strategic strain relief points to prevent conductor fatigue at termination points. All connection points utilize crimp-and-seal technology to prevent moisture ingress and electrolytic migration.
