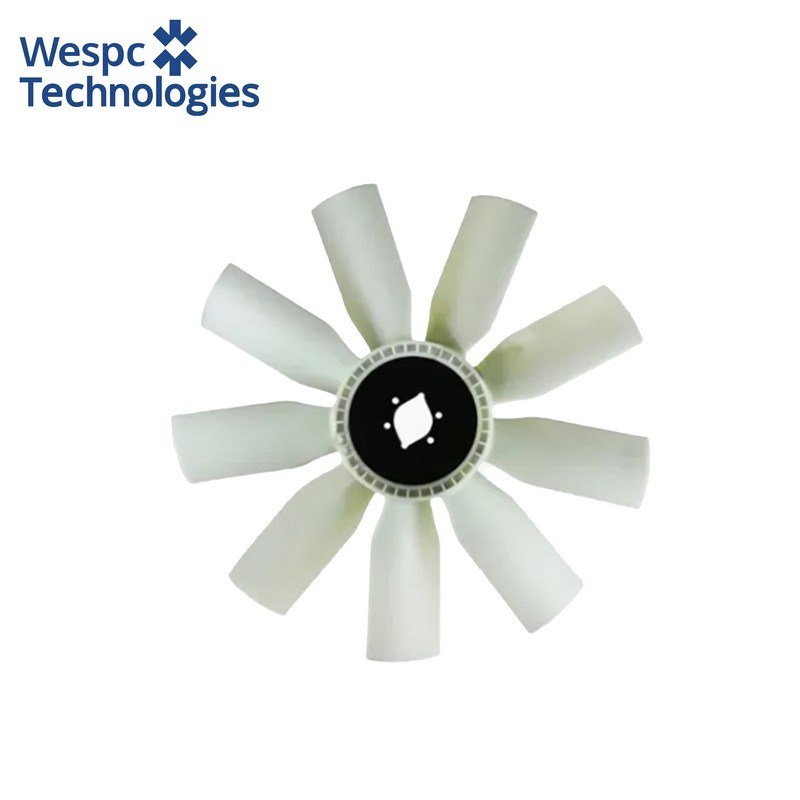

WESPC 2485C555 Cooling Fan for Perkins 1106 Diesel Engine Cast Iron 610mm

WESPC 2485C555 Cooling Fan for Perkins 1106 Diesel Engine Cast Iron 610mm

Application:

WESPC 2485C555 cooling fan is designed for Perkins 1106 series 6-cylinder diesel engines, including models 1106A-70TA, 1106C-E70TA, 1106D-E66TA, and 1106D-E70TA. It is also compatible with Caterpillar C7.1 engines used in excavators and generator sets. This fan is a critical component of the engine’s cooling system, responsible for maintaining optimal operating temperature by enhancing airflow across the radiator and engine block. It ensures thermal stability, protects against overheating, and supports efficient combustion under high-load conditions.

Generator sets:

Commonly installed in 200–300 kVA diesel generator platforms powered by Perkins 1106 series engines. The WESPC 2485C555 fan provides consistent airflow to dissipate heat generated during continuous operation and peak load cycles. It contributes to fuel efficiency, reduced thermal stress, and long-term engine reliability in commercial and industrial backup power systems.

Construction machinery:

Suitable for Caterpillar excavators such as 320D2 and 323D powered by Perkins 1106D-E70TA and C7.1 engines. The fan maintains cooling efficiency in high-vibration, high-temperature environments, supporting stable engine output and protecting critical components during heavy-duty operations.

Agricultural equipment:

Used in high-horsepower tractors and harvesters requiring robust cooling performance during extended field operations. The fan ensures consistent airflow across the radiator and engine block, reducing oil temperature and preventing thermal degradation of engine components.

Industrial systems:

Applied in stationary hydraulic units, compressors, and mechanical drives where engine cooling is essential for continuous operation. The 2485C555 fan supports thermal regulation in demanding industrial environments, helping maintain engine performance and prevent heat-related failures.

Technical specifications:

• Diameter: 610 mm

• Blade count: 7

• Rotation: reverse/counter

• Material: high-strength plastic

• Weight: approx. 2.17 kg

• Packaging dimensions: 60 × 60 × 30 cm

• Installation: mounted to fan hub or pulley assembly

• Compatible engine models: Perkins 1106A-70TA, 1106C-E70TA, 1106D-E66TA, 1106D-E70TA; Caterpillar C7.1

Material & performance features:

Manufactured using high-durability composite materials with aerodynamic blade design for low noise and high airflow efficiency. Engineered to withstand high rotational speeds, thermal cycling, and vibration. ISO9001 and TS16949 certified for global diesel engine applications. Designed to meet Tier 3 and Tier 4 emissions cooling requirements.

Interchange part number:

2485C555; verified fitment for Perkins 1106 series and Caterpillar C7.1 engines. Compatible with standard cooling system configurations across generator sets, construction machinery, agricultural equipment, and industrial systems.
