| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | KRP1560 |

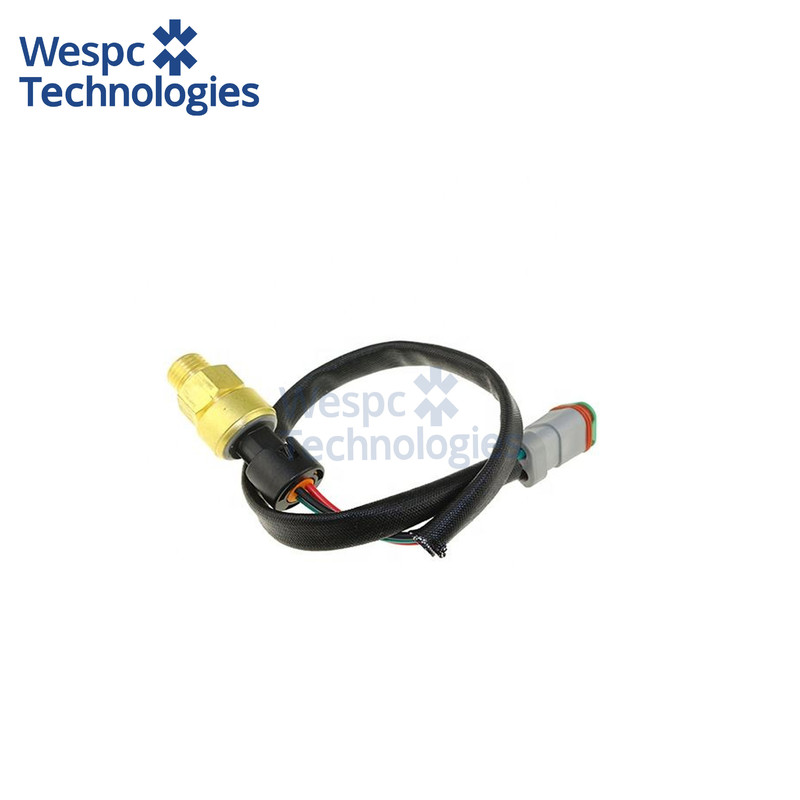

WESPC Air Pressure Sensor KRP1560 For Perkins 2306 2806 Series Engines
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
KRP1560 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a three-wire piezo-resistive pressure transducer housed in a corrosion-resistant brass body with M14 × 1.5 male thread and 22 mm hex, 65 mm overall length and 85 g net weight. It measures 0–100 PSI (0–6.9 bar) with ±2 % full-scale accuracy, outputs a linear 0.5–4.5 V signal referenced to a 12 V supply and draws <15 mA. Operating temperature spans –40 °C to +125 °C and the sensor withstands 1 000 h salt-spray exposure per ASTM B117.
Material & performance features:
The sensing diaphragm is 17-4 PH stainless steel, laser-welded to the brass body for absolute hermetic sealing and protected by a sintered brass snubber that damps pressure pulsations and prevents oil-borne debris from reaching the element. Internal circuitry is over-moulded in high-temperature PPS resin, achieving IP67 ingress protection and surviving 500 thermal-shock cycles from –40 °C to +125 °C without calibration drift.
Interchange part numbers:
KRP1560, 194-6722, 100CP2-114, 100CP2114, U5MK1169, 10000-05795, 10000-05800, KRP1560-01, 194-6722-01, 100CP2-114-01, 100CP2-114-02, 100CP2-114-03, 100CP2-114-04, 100CP2-114-05, 100CP2-114-06, 100CP2-114-07, 100CP2-114-08, 100CP2-114-09, 100CP2-114-10
