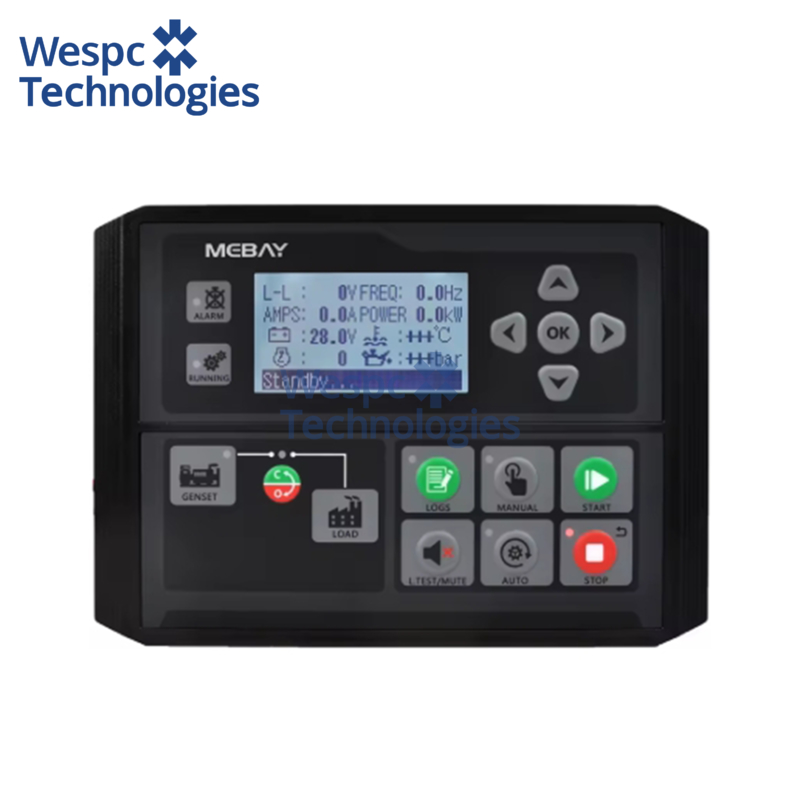

WESPC Original DC40DR MK4 Factory Generator Controller Remote Control Module
|
Operation Voltage
|
DC8-36V Continuous |
| Frequency |
150-9000Hz |
| Rated Current |
9999 |
| Storage condition |
-40-85℃ |
| MAX Accumulating |
MAX Accumulating |
| Overall dimension |
189mm×134mm×50mm |
| Panel cutout |
160mm×120mm |
| Weight: |
0.9Kg |
summary
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.
3.0 inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.
Main Features
---Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
---Adapt to 3P4W, 1P2W, 2P3W (120V/240V,50/60HZ)
---Sensor can be self-defined by front face button or PC software.
---Input/output function, status can be shown directly.
---More categories of surface setting.
---Totally 6 relay's output, 5 switches input, 3 sensor simulation input connectors
---Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
