| Place of Origin: | United Kingdom |
| Brand Name: | DSE |
| Certification: | ISO9001 |
| Model Number: | DSE8660 MKII |

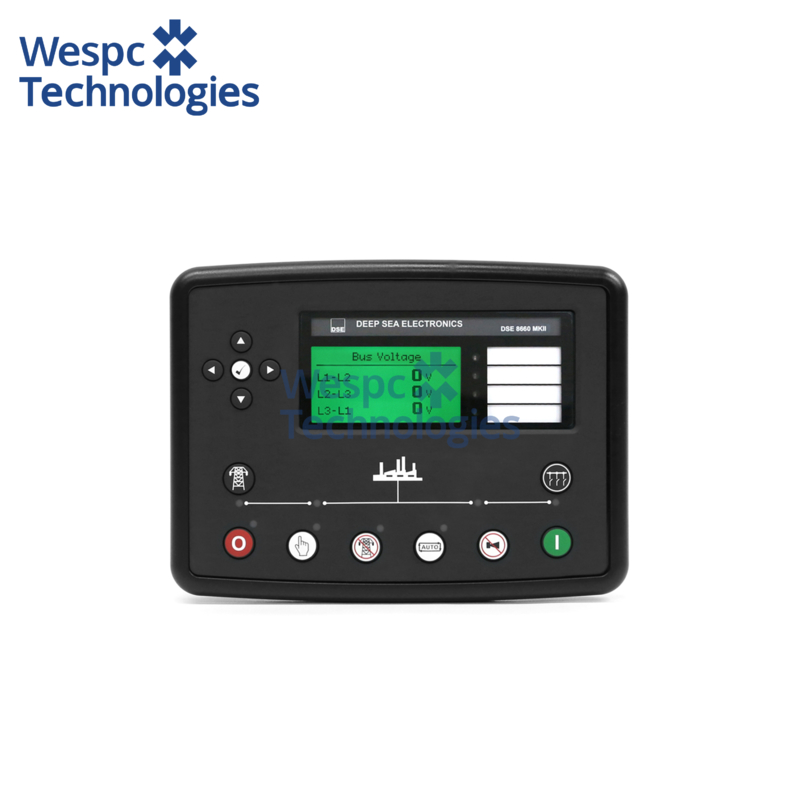

WESPC Original DSE8660 MKII Auto Transfer Switch & Mains (Utility) Control Module
|
MOQ
|
1pcs
|
|
Product Name |
Auto Transfer Switch & Mains (Utility) Control Module
|
|
Application
|
Diesel generator
|
|
Panel Cutout Size
|
220 mm x 160 mm
|
|
Color
|
Black
|
|
Material
|
Plastic
|
DSE8660 MKII
Auto Transfer Switch & Mains (Utility) Control Module
The DSE8660 MKII is the latest and most advanced Auto Transfer Switch & Mains (Utility) Control Module within the DSE synchronising and load sharing control module range. Developed alongside the DSE8610 MKII this control module provides industry-leading features and benefits for the most complex grid type generator installations.
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
WEIGHT
0.88kg
PRODUCT VARIANTS
8660-02 - 8660 MKII Auto Transfer Switch & Mains (Utility) Control Module (Ct, Rtc)
