| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 3142D061 |

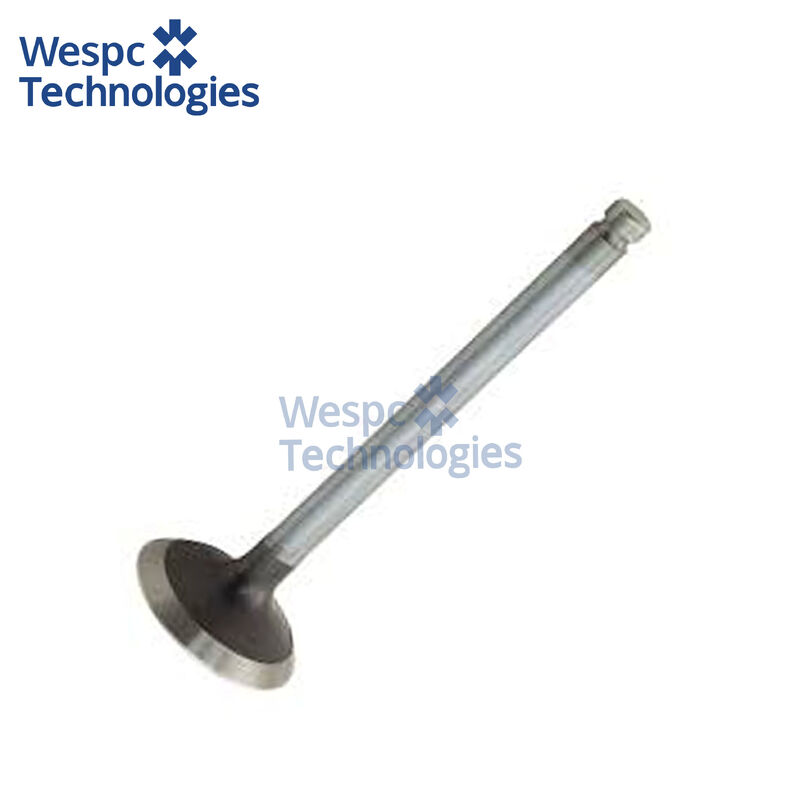

WESPC Exhaust Valve 3142D061 for Perkins four cylinder diesel engines
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
3142D061 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Perkins 1004-42, N4.421, and 1004.42 series four-cylinder diesel engines (4.2 L displacement) . This exhaust valve controls exhaust gas flow from the combustion chamber in moderate-duty diesel applications. Commonly found in Massey Ferguson 3000 and 4000 series tractors (3315, 3325, 3330, 3340, 3350, 4225, 4235, 4240, 4325, 4335), JCB telescopic handlers and wheeled loaders (520 LE, 407BZX, 407ZX, 410BZX, 410ZX), Manitou MC40/MC50/MC60 telescopic handlers , and Cater 3054B series engines (various models). Each four-cylinder engine requires 4 exhaust valves.
Technical specifications:
Valve type: Exhaust (discharge) valve for four-stroke diesel engines
Head diameter: 42.0 mm (1.654 inches)
Overall length: 124.2 mm (4.890 inches)
Stem diameter: 9.0 mm (0.352-0.354 inches)
Seat angle: 45° precision-ground sealing face
Stem type: 1G (single-groove for split collet retention)
Tip length: 5.55 mm (0.2185 inches)
Tip configuration: Induction-hardened to resist wear from rocker arm contact
Weight: 0.123-0.250 kg per valve (depending on packaging)
Material: High-alloy heat-resistant steel
Material & performance features:
Manufactured from high-alloy heat-resistant steel containing 0.35-0.45% carbon, 1.5-2.5% chromium, with additions of manganese and silicon for enhanced high-temperature strength and corrosion resistance . The valve head undergoes solution treatment at 1,050-1,100°C followed by age-hardening to achieve 28-32 HRC hardness, maintaining structural integrity at exhaust gas temperatures exceeding 700°C.The stem receives gas nitriding treatment creating a 0.02-0.04 mm deep surface layer exceeding 750 HV hardness to resist scuffing during prolonged operation. The 45° seat angle is precision-machined to Ra 0.4-0.8 µm finish, ensuring positive sealing with the valve seat insert (3314A009, 3314A051, or 3314A102) and preventing blow-by and compression loss. The tip is induction-hardened to 52-56 HRC to resist cupping under 900-1,100 N valve spring loads.
Interchange part numbers:
PERKINS 3142D061 (primary OEM specification)
CATER 176-3137 (Cater cross-reference)
KMP Brand 3142D061 (warranty-backed aftermarket, 18-month warranty)
JCB 02/201815 (JCB equipment reference)
MASSEY FERGUSON 4222957M1 (tractor application)
VAPORMATIC VPA1064 (European aftermarket)
SBI 05004 (aftermarket brand)
U3142D061 (Perkins alternative format)
Maxiforce VTK422 (engine kit including 3142D061)
AGKITS 3142D061 (North American distributor)
