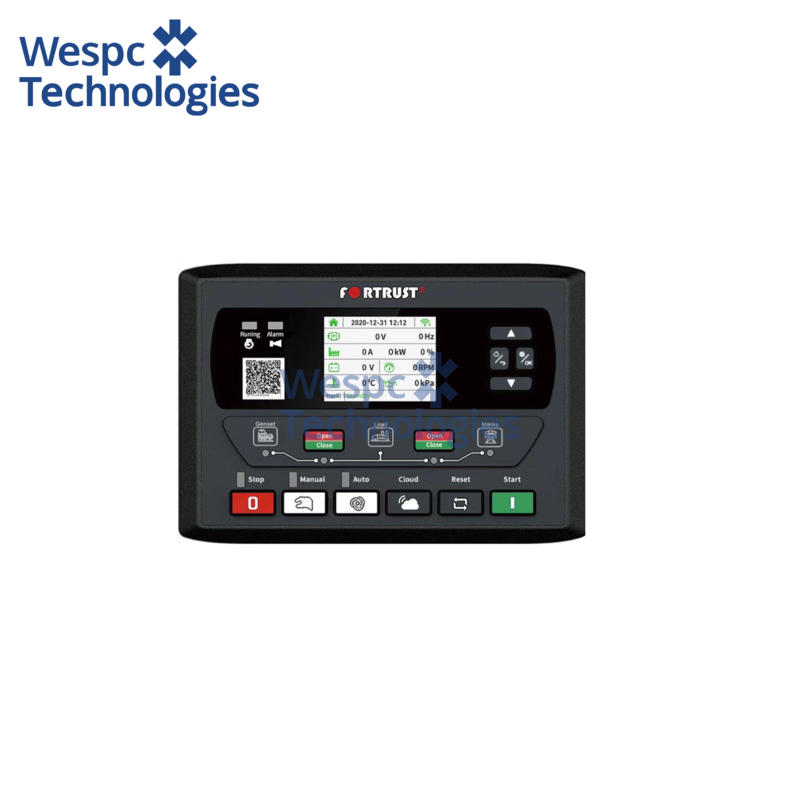

WESPC Original GEC6110D-485-CAN Generator Controller ATS Control Module
| Brand Name | Fortrust |
| Place of Origin | China |
| Model Number | GEC6110D-485-CAN |
| Marketing Type | Ordinary Product |
| Certificatr | ISO9001 |
| Stock | Yes |
Overview:
The GEC6100D Power Station Automation Controller is designed for single diesel generator set automation and monitoring systems. It enables automatic start/stop, data measurement, alarm protection, and "three-remote" (telemetry, telecommunication, telecontrol) functions for conventional generator sets. The controller features a color LCD graphic display supporting multiple languages including Chinese and English, offering simple operation and reliable performance.
Utilizing 32-bit microprocessor technology, the GEC6100D achieves precise measurement of multiple parameters, setpoint adjustment, timing, and threshold setting functions. Most parameters can be adjusted directly from the front panel, while all parameters can be monitored and adjusted via a PC through the module's RS485 or USB interface. With its compact structure, simple wiring, and high reliability, it is widely suitable for various types of generator set automation systems.
Model Variations:
GEC6110D: Designed for single-unit automation, supporting automatic start/stop via remote start signal.
GEC6120D: Builds on GEC6110D with added utility power detection and automatic mains failure (AMF) transfer control, ideal for single-unit automation systems with one utility source and one generator.
Key Features:
Functionally compatible with mainstream 6100 series controllers in the market.
Dimensionally compatible with mainstream 6100 series controllers.
Equipped with a 2.8-inch color LCD screen capable of withstanding low temperatures down to -30°C.
Standard WiFi support enables basic cloud services via mobile app.
5VDC output supports voltage-type oil pressure sensors, significantly extending sensor lifespan.
Multi-language support (Chinese/Turkish/Russian/French/English/Polish/Spanish/Ukrainian).
Optional 4G/Ethernet gateway for advanced cloud services.
Optional support for electronic fuel injection ECU communication and RS485 communication.
Note: All specifications and features are based on typical industrial standards for generator controllers.
