| Place of Origin: | China |
| Brand Name: | Fortrust |
| Certification: | CE,RoHS,ISO9001 |
| Model Number: | GEC4510-485-CAN-4G |

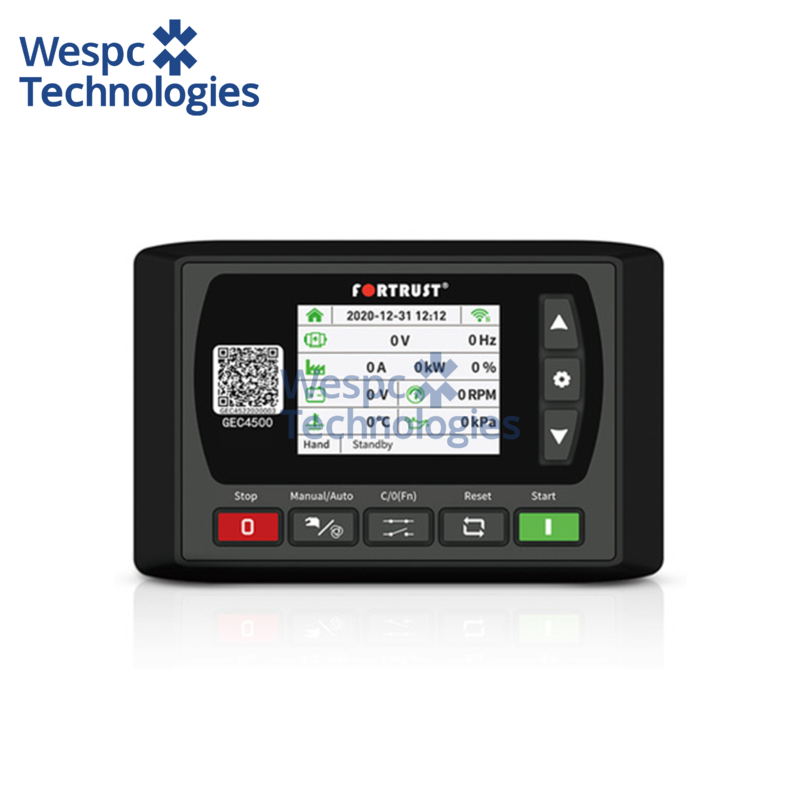

WESPC Original GEC4510-485-CAN-4G Diesel Generator Set Controller Module
| Brand Name | Fortrust |
| Place of Origin | China |
| Model Number | GEC4510-485-CAN-4G |
| Marketing Type | Ordinary Product |
| Certificatr | ISO9001 |
| Stock | Yes |
Product Overview:
The GEC4500 IoT Generator Set Controller delivers comprehensive automation and monitoring solutions for individual diesel generator installations. This advanced system provides fully automatic start/stop operation, real-time performance monitoring, complete alarm protection, and integrated remote management through telemetry, command, and signaling capabilities.
Core Capabilities:
Automatic start/stop control with remote operation support
Real-time data measurement and monitoring
Comprehensive alarm protection systems
Three-remote functionality (telemetry, telecommand, telesignal)
Multi-language interface (Chinese, English, Russian, Spanish, Turkish, French)
Technical Specifications:
32-bit microprocessor architecture for precise control
320×240 color LCD with backlight illumination
Touch-button operation with intuitive interface
RS485 and USB interfaces for PC connectivity
Compact design with simplified wiring requirements
Model Variants:
GEC4510: Basic automation with remote start/stop functionality
GEC4520: Adds grid power detection and automatic transfer switching (AMF)
GEC4510-4G: 4G-enabled version for remote monitoring and control
GEC4520-4G: Comprehensive solution with 4G connectivity and full remote management
Advanced Features:
Cloud connectivity through RS485 communication modules
Mobile app and computer access for remote monitoring
Real-time data upload and historical record tracking
Start/stop and alarm curve analysis for performance insights
Wi-Fi connectivity for local diagnostics and calibration
Remote technical support capability
Protection & Monitoring:
Grid protection: Over/under voltage, phase loss detection
Generator protection: Voltage/frequency monitoring, overcurrent protection
Three fixed analog sensors (water temperature, oil pressure, fuel level)
Programmable sensor for additional measurements
Comprehensive fault protection with visual display
System Configuration:
Four programmable relay outputs
Configurable I/O ports for flexible applications
Digital parameter adjustment system
External EEPROM for setting storage
Support for various temperature, pressure, and level sensors
Connectivity & Maintenance:
Built-in Wi-Fi for mobile app integration
USB firmware upgrade capability
Configurable maintenance alerts
Multiple start success conditions
IoT gateway support for remote management
Historical data logging (80 records)
Wide operating voltage range (8-35VDC)
Physical Design:
Modular construction with flame-retardant ABS housing
Pluggable terminal connections
Compact embedded mounting design
Acrylic screen protection with silicone keypad
Designed for extreme temperature operation
The GEC4500 series combines robust engineering with advanced connectivity options, making it suitable for various generator automation applications across different environments and operational requirements.
