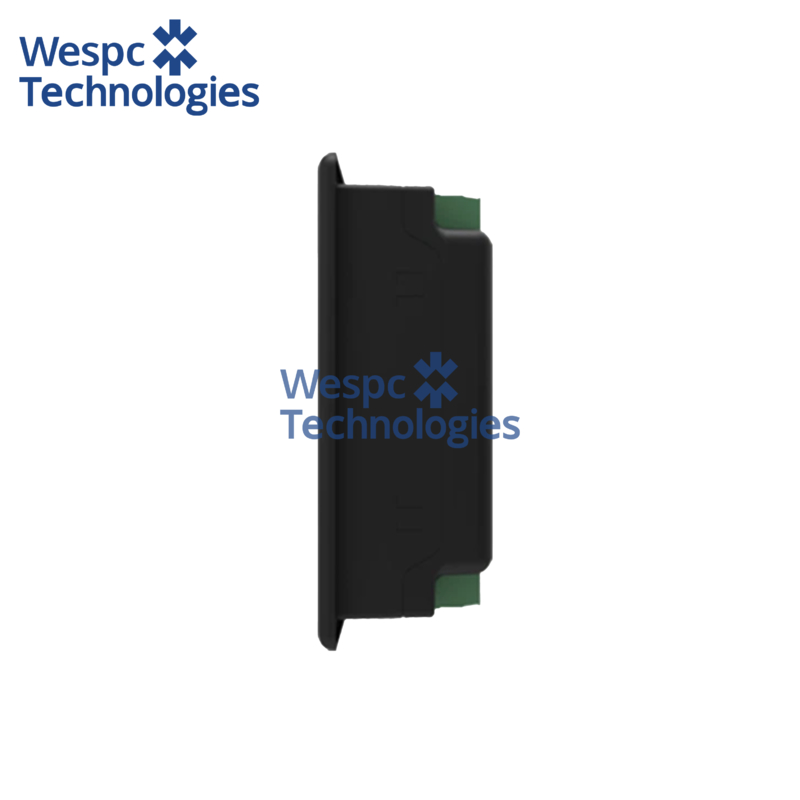

WESPC Original SmartGen HAT600B HAT600NB ATS Diesel Generator Controller

WESPC Original SmartGen HAT600B HAT600NB ATS Diesel Generator Controller

DESCRIPTION:

The HAT600 Series ATS Controller is a smart dual-power module designed with programmable functions, automatic measurement, LCD display, and digital communication capabilities. It integrates digital intelligence with network connectivity to minimize operational errors and streamline control processes—making it an ideal solution for automatic transfer systems (ATS).

Built around a high-performance microprocessor, the controller precisely detects extended-spectrum 2-way, 3-phase voltage and responds with passive control switching under abnormal conditions such as over/under voltage, phase loss, and frequency deviations. It is compatible with various ATS configurations including Intelligent ATS, Contactor ATS, and Circuit Breaker ATS.

With a compact design, advanced circuitry, and simplified wiring, the HAT600 Series is widely adopted across industries such as electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal infrastructure, smart buildings, electrical equipment, and automated testing systems.

PERFORMANCE & FEATURES:

• System Configuration Options:

  • Mains (1#) & Mains (2#)

  • Mains (1#) & Generator (2#)

  • Generator (1#) & Mains (2#)

  • Generator (1#) & Generator (2#)

• Display & Interface:

  • 128×64 backlit LCD

  • Chinese/English language options

  • Push-button operation

• Measurement Capabilities:

  • Dual 3-phase voltage and frequency

  • Active power, apparent power, power factor, and 3-phase current

• Protection Functions:

  • Overcurrent alarm

  • Over/under voltage

  • Phase loss and reverse phase sequence

  • Over/under frequency

• Control Modes:

  • Automatic and manual switching

  • Manual override for forced open/close

• Security & Access:

  • On-site parameter configuration

  • Dual password protection for authorized access

• Genset Testing Modes:

  • On-load and off-load options

• Reclosing Function:

  • Configurable output signal: interval or continuous

• Neutral Line Compatibility:

  • Supports single, dual, and changeover neutral positions

  • Isolated neutral lines for generator and mains

• Additional Functions:

  • Real-time clock (RTC)

  • 99-event circular log memory

  • Weekly/monthly scheduling with load trial options

  • Dual genset cyclic control with runtime and crank rest settings

• Power Supply Range:

  • DC 8V–35V (instantaneous tolerance up to 80V DC)

  • Compatible with HWS560 module (AC 85V–560V input, DC 12V output)

• Terminal Design:

  • Wide spacing for AC input terminals

  • Max input voltage: 625V

• Communication Interface:

  • Isolated RS485 port

  • ModBus protocol for remote control, monitoring, and communication

• System Compatibility:

  • 3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire, 2-phase 3-wire AC systems

• Construction & Installation:

  • Modular design

  • Flame-retardant ABS housing

  • Plug-in terminals

  • Embedded mounting for easy installation
