| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | Engine Parts |
| Model Number: | DC70DR MK2 |
| Working voltage | DC8V----36V Continuous |
| Working condition |
-20-65℃ |
| Storage condition | -40-85℃ |
| Overall dimension | 210mm*160mm*50mm |
| Panel cutout | 186mm*142mm |
| Weight | 0.9Kg |

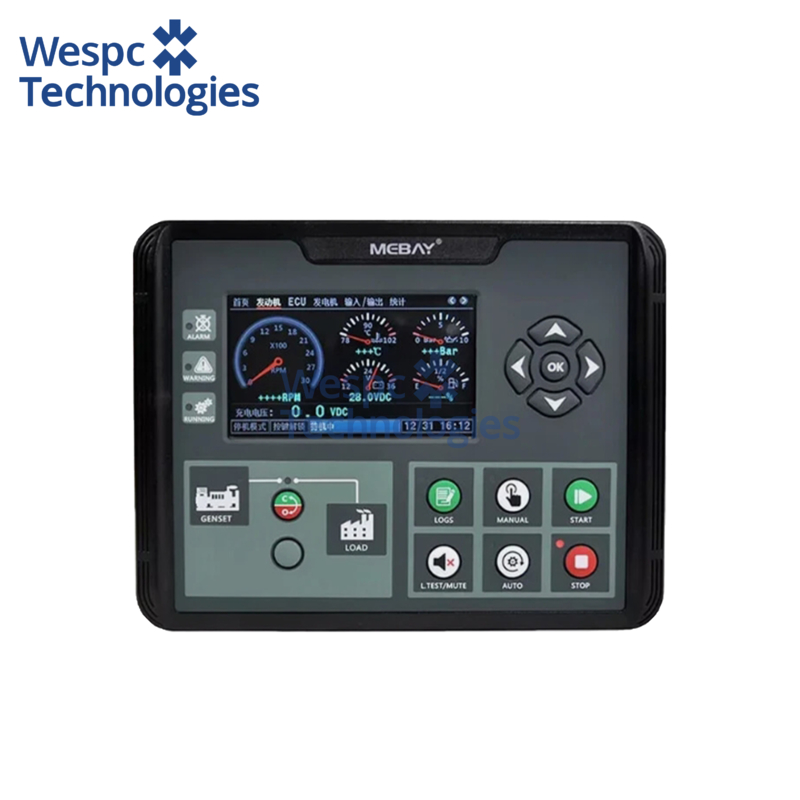

This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting.
4.3 inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words.Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can not work smoothly.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC.It can be widely applied for all kinds of auto control system of gensets.
Main Features
32 units Micro-procession technology is used.
4.3 inch TFT colorful big screen LCD, option language interface(Chinese/English), user’s language set if necessary.
Indicator and number display through UI surface.
Acrylic material is adapted to protect the screen.
Silicone panels;
USB Port: parameters can be set even without power through USB port to monitor in real time.
With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.
CAN communication port, J1939 protocol inside.
Various kinds of parameters display.
