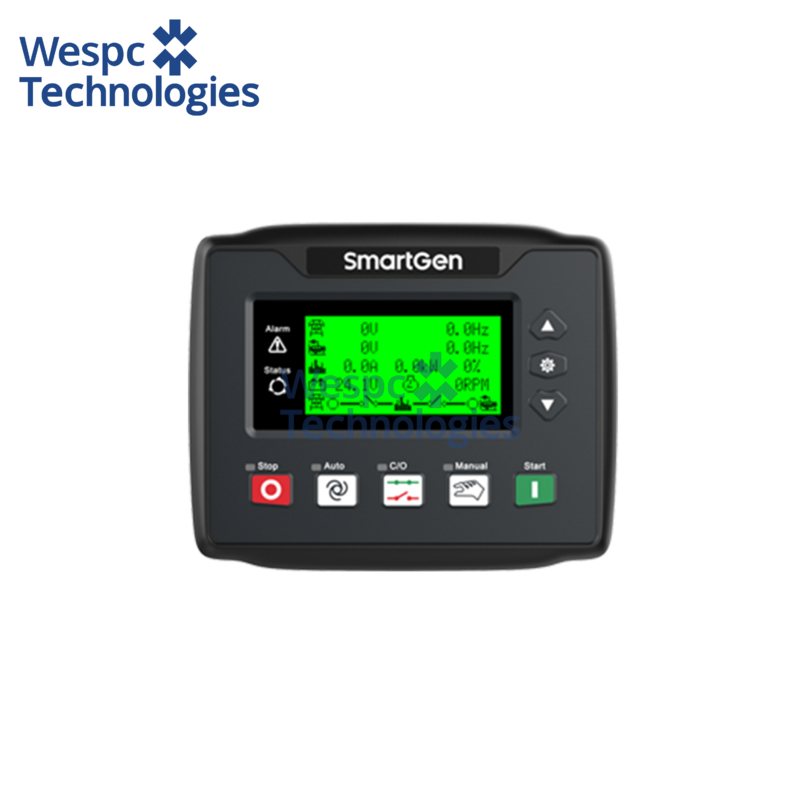

WESPC Original Smartgen HGM4020CAN Genset Control Module Generator Controller

WESPC Original Smartgen HGM4020CAN Genset Control Module Generator Controller

Technical Specifications:

• Display Type: LCD, resolution 132×64

• Operation Panel: Silicone rubber keypad

• Language Support: Chinese, English, plus six additional languages (total of 8)

• Digital Inputs: 5 channels (including 2 multifunctional inputs)

• Relay Outputs: 6 channels

• Analog Inputs: 4 channels

• AMF Function: Supported

• AC System Compatibility: 1P2W / 2P3W / 3P3W / 3P4W

• Alternator Frequency: 50Hz / 60Hz

• Power Monitoring: kW and Ampere detection & display

• Monitoring Interface: USB

• Programming Interface: USB

• Real-Time Clock & Event Logging: Supported

• Scheduled Genset Start: Supported

• Maintenance Reminder: Supported

• DC Power Supply Range: 8V to 35V

• Controller Dimensions: 135 × 110 × 44 mm

• Panel Cutout Size: 116 × 90 mm

• Operating Temperature Range: –25°C to +70°C

Product Overview:

The HGM4000N Series Genset Controller integrates digital control, intelligent processing, and network communication technologies. Designed for single-unit generator automation, it supports automatic start/stop, real-time data acquisition, alarm protection, and remote management.

Featuring a backlit LCD and multilingual interface (Chinese, English, Spanish, Russian, Turkish, French, Portuguese, Polish), the controller offers intuitive operation and high adaptability. Built on microprocessor architecture, it ensures precise parameter measurement, configurable setpoints, and time scheduling. All settings can be adjusted via the front panel or through USB/RS485 interface using a PC.

Its compact design, advanced circuitry, and simplified wiring make it suitable for a wide range of automatic genset control applications.

Performance & Features

Model Variants:

• HGM4010N / HGM4010NC / HGM4010CAN – Automatic Start Module (ASM): Enables remote start/stop control.

• HGM4020N / HGM4020NC / HGM4020CAN – Auto Mains Failure (AMF): Adds mains monitoring and automatic transfer between mains and generator.

Core Functions:

• 132×64 LCD with backlight and multilingual support

• Acrylic screen cover for enhanced scratch and wear resistance

• Silicone keypad suitable for extreme temperatures

• RS485 interface with ModBus protocol for remote control, monitoring, and communication

• CANBUS interface (J1939) for ECU data access and control (start/stop, speed, fuel, etc.)

• Compatible with multiple AC systems: 3P4W, 3P3W, 2P3W, 1P2W

• Real-time monitoring of voltage, current, power, and frequency

• Protection features for both mains and generator:

  • Mains: Over/under voltage, phase loss

  • Generator: Over/under voltage, frequency, current, power

• Engine parameter display and fault diagnostics

• ATS control with energize-to-stop (ETS), idle, preheat, and speed control outputs

• FLASH memory for parameter retention during power loss

• Dual multifunction input ports (fuel level, programmable sensors)

• Support for multiple temperature, pressure, and liquid level sensors

• Emergency start and automatic flywheel tooth recognition

• Wide DC input range (8–35V), suitable for various battery environments

• Digital parameter adjustment for improved stability and reliability

• Maintenance scheduling with customizable actions (warning, shutdown, trip)

• Event log (up to 99 records), real-time clock, and scheduled start/stop (daily/weekly/monthly)

• IP55 waterproof rating with rubber seal between panel and enclosure

• Metal fixing clips for high-temperature environments

• Modular design with flame-retardant ABS housing and plug-in terminals for easy installation
