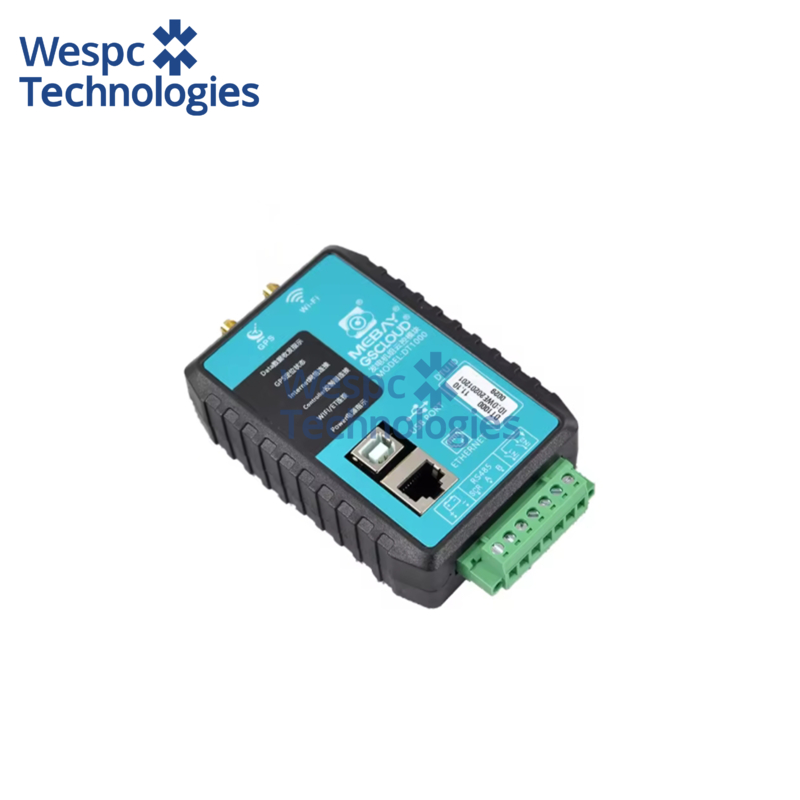

WESPC Original DT1000 Remote Control Genset Controller 4G Cloud Module

WESPC Original DT1000 Remote Control Genset Controller 4G Cloud Module

Summary

  DT1000 is the data acquisition and communication module of GSCloud® generator set cloud control system developed by our company, which is WIFI/ET version. Its main function is to connect the generator set controller to the interconnection network, to realize the computer PC terminal and mobile phone APP remote real-time monitoring generator set, to realize the remote control unit, remote data monitoring, remote fault diagnosis, unit position real-time positioning, maintenance management and so on.

  It has RS485 communication port, which can read and write the commonly controlled data. The internal integration of GPS module can realize the positioning of the unit. The communication module adopts European lock terminal, the connection is firm and the installation is convenient.

Main Features

  DT1000:Support WIFI/ET network,GPS, with RS485 and other functions;

  It can be connected to cloud server through WIFI wireless network or Ethernet interface, and one communication module can monitor one generator set;

  Using ARM kernel 32bit single chip microcomputer, processing speed, strong expansion ability.

  Wide range of working power supply DC (8 ≤ 36) V.

  With USB-B interface, DTU parameters can be set through the PC;

  It has good extended function, extensible environment detection, other equipment parameter detection and other modules.

  Data communication protocol using encryption algorithm.

  a compression algorithm is adopted to greatly reduce the flow consumption.

  the module is provided with the GPS positioning and the base station positioning function, and the real-time positioning of the unit can be realized.

  with two sets of programmable switch quantity input ports.

  When the generator set alarm, can immediately upload data to the server.

  the working state of the module is indicated by the LED indicating lamp, and the working state of the module is conveniently realized by the user in real time.

  The installation or screw fixation of the standard type 35mm guide rail is adopted.

  Modular structure design, ABS shell, light weight, compact structure, easy to install.
