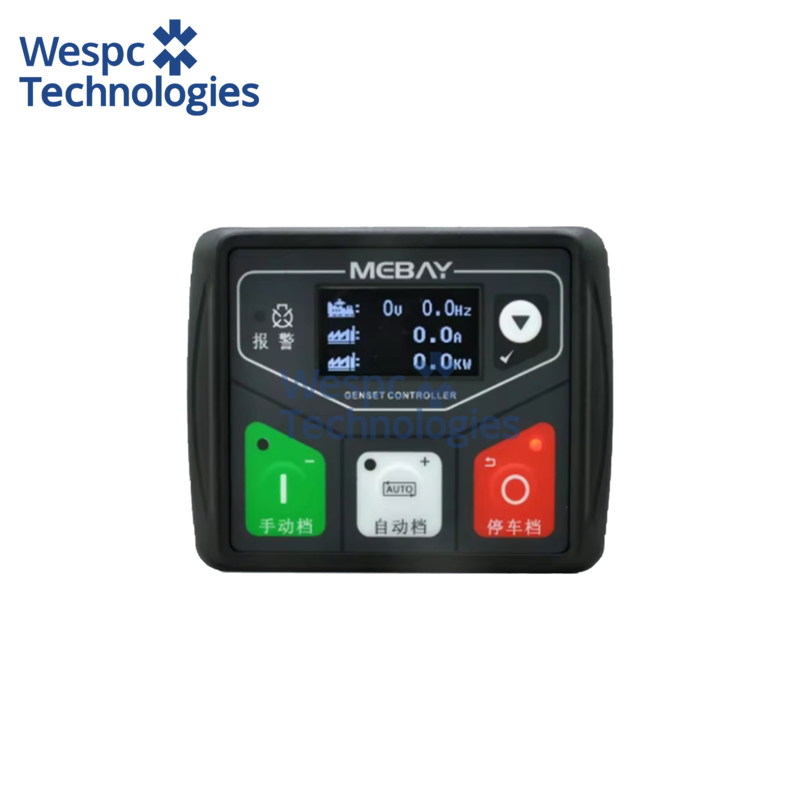

WESPC Original DC30MCR Low Temperature Genset Controller Generator

WESPC Original   DC30MCR Low Temperature Genset Controller Generator

Summary

This Controller Series is specialized for small diesel, gasoline, gas generator sets’ start, stop, monitor and defaults checking as well as parameters setting.

The controller has OLED screen, can display various faults in the same time that the genset will be stopped once it can not work smoothly.

There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.

Main Features

There are two Models under DC30MR series.

DC30MR: Used for single machine automation, Start/Stop through remote start signal.  Standard RS485 port.

DC30MCR: Based on DC30MR: Change the speed sensor (MPU) detection to CAN communication interface, and adapt to more than 40 kinds of engines.

  Dual core 32bit high performance single chip microcomputer.

  1.8 inches 128*64 OLED display, option language interface (Chinese/English), user’s language set if necessary.

  PC front face panel, which is water-proof, oil-proof, UV proof so that the durability is longer.

  RS485: With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.

  All the parameters can be set through front panel buttons.

  Collect and display a variety of engine and generator parameters.

  Records function: relative faults shall be recorded in real time.

  It has 6 relay outputs, 4 of which are configurable, and more than 10 functions can be selected for each channel.

  1 switch value input, and each can be set as max 10 functions.

  DC30MR: 3 sensor simulation input connectors, various kinds of units can be set.

  DC30MCR: 2 sensor simulation input connectors, various kinds of units can be set.CAN communication port, built-in J1939 protocol, has matched more than 40 kinds of engines;

  Sensor can be self-defined by front face button or PC software.

  Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen

  Control Protection: Auto Start/Stop of genset, load transfer and perfect failure display and protection.

  Standard water-proof rubber gasket. The waterproof can reach IP54.

  Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
