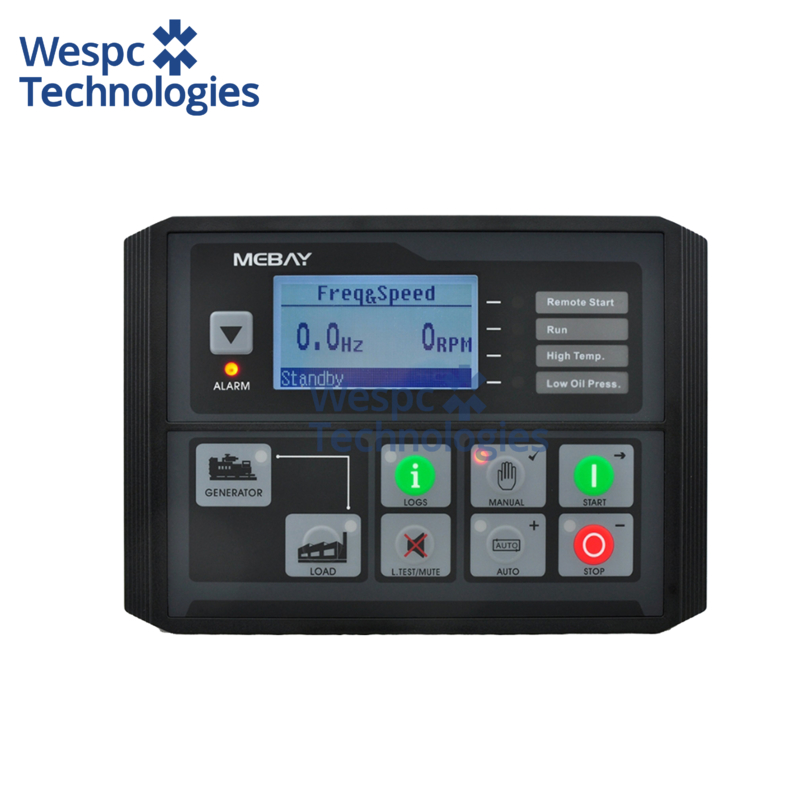

WESPC Original DC42DR-ABF MK3 Genset Control Panel Module Controller
|
Operation Voltage |
DC8-36V Continuous |
| Rotate speed sensor Frequency | 50-10000Hz |
| Working condition | -25-65℃ |
| Storage condition | -40-85℃ |
| MAX Accumulating Time | 9999.9Hours(Min Store time:6min) |
| Overall dimension | 189mm×134mm×50mm |
| Panel cutout | 160mm×120mm |
| Weight: | 0.68Kg |
Summary
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting.
The controller has a 3 inch large screen point array LCD screen, can display various faults in the same time that the genset will be stopped once it can not work smoothly.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by USB and RS485 to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
Features
There are four Models under DC4xD MK3 series.
DC40D MK3: used for single machine automation. Start/Stop through remote start signal.
DC42D MK3:Based on DC40D, it adds Mains monitoring and AMF (Mains/Generator automatic switching control ) , especially suitable for the automation system composed by mains and genset.
DC40DR MK3:Based on DC40D, it adds RS485 communication port.
DC42DR MK3:Based on DC42D, it adds RS485 communication port.
DC42DR-ABF MK3:Based on DC42DR, it adds ABF backup battery pack measurement and control function.
Main Features
32 units Micro-procession technology is used.
3 inches 128*64 LCD display with backlight, option language interface(Chinese/English), user’s language set if necessary.
Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen
Gather and display various engine and generator’s parameters. Adapt to 3P4W,1P2W,2P3W (120V/240V,50/60HZ)
Sensor can be self-defined by front face button or PC software.
With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.
Input/output function, status can be shown directly.
More categories of surface setting.
Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.
Countdown function, which can set the maintenance time or date.
Records function: relative faults shall be recorded in real time.
Totally 6 relay’s output, among which 4 relay output can be self-configurable, each relay can be set as max 20 functions, besides, there are 4 groups as non-contact terminals.
5 relays can be set as switch value input, and each can be set as max 10 functions.
3 sensor simulation input connectors, 5 input types is configurable and various kinds of units can be set.
Standard water-proof rubber gasket. The waterproof can reach IP65.
Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
