WESPC Original GV57 MK2 Digital Meter 3 Phase Voltage Current Frequency

Brand Name:	Mebay
Model Number:	GV57 MK2
MOQ:	10pcs
Price:	U$35-38(1pcs)
Packaging Details:	Carton
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Application:

Diesel Generator

Warranty:

1 Year

Usage:

Generator Parts

Material:

Plastic

Packing:

Carton

10pcs

Supply Ability:

In stock

Highlight:

car engine control module

diesel generator controller

Electronic Digital Meter

Product Description

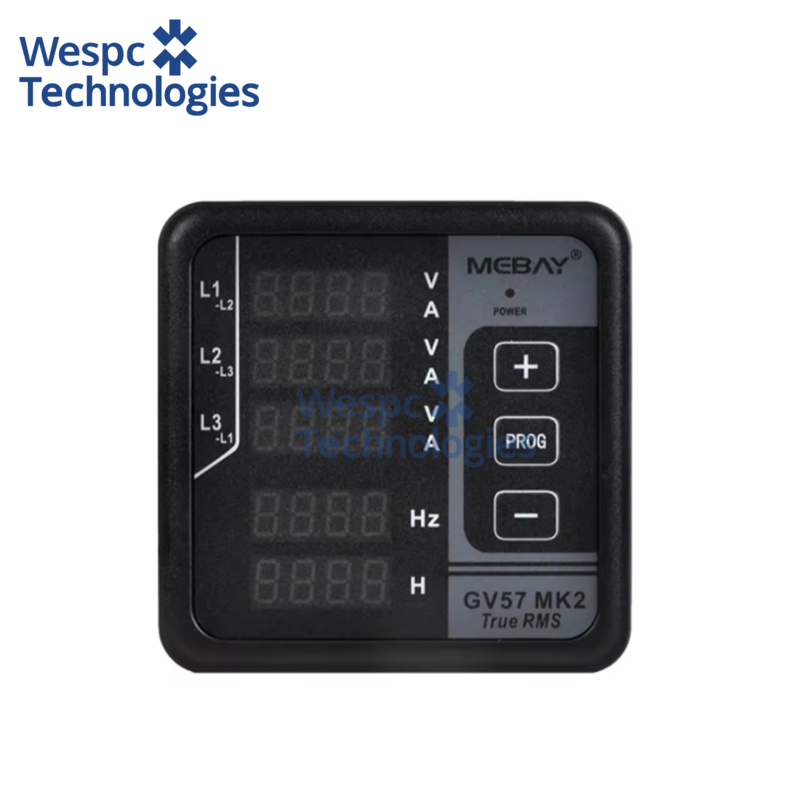

WESPC Original GV57 MK2 Digital Meter 3-Phase Voltage Current Frequency

Model Number	GV57 MK2
Consuming power	MAX:3 W
Working condition	-25-70℃
Storage condition	-40-85℃
Panel cutout	91mm*91mm
Weight	0.32kg

Summary

GV57 MK2 is a voltage and current detection instrument for three-phase generator. Five high brightness LED displays relevant
parameters. RS485 communication port can be selected to read more parameters. The system parameters can be set according to the
key, so as to meet the application of different occasions.
There are two models of GV57 MK2 series instruments
GV57 MK2: AC power supply, can sample and display three-phase AC voltage, three-phase AC current and other parameters;
GV57R MK2: on the basis of GV57 MK2, RS485 port is added to monitor relevant parameters and set parameters through PC software.

Features

Micro-computer Control.

High-lighted LED tube Indication.
Five screens display.
AC power supply.
Configurable AC CT Ratio .
Wide voltage range.

Parameters display

Line Voltage:L1-L2,L2-L3,L3-L1(V)；

Three phase current(A)；
Frequency(Hz)；
Cumulative running time(H);
Average power factor cos Φ (read only through RS485 port);
Power factor cos Φ (read only through RS485 port);
Active power kW (read only through RS485 port);
Reactive power kvar (read only through RS485 port);
Apparent power KVA (read only through RS485 port);
Kwh of the current electric quantity (read only through RS485 port);
Accumulated electric energy kWh (read only through RS485 port);

Range and accuracy

AC voltage:Phase voltage AC30-276V,Deviation≦±1%(within the range)
Current:0-6000A；deviation≦±2%
Frequency:10-70HZ;deviation≦±0.5%;
The average power factor cos Φ: 0-1.0, the error is less than ± 5%;
Power factor cos Φ: 0-1.0, error less than ± 5%;
Active power: 0-1380kw, error less than ± 3%;
Reactive power: 0-1380kvar, error less than ± 3%;
Apparent power: 0-1380kva, error less than ± 3%;
Electric quantity: 0-9999kwh, error less than ± 5%;
Cumulative power: 0-9999kwh, error less than ± 5%;
Cumulative operation time H: 0-99999, error less than ± 5%;

WESPC Original GV57 MK2 Digital Meter 3 Phase Voltage Current Frequency 0
