WESPC Original ATS SGQ100A ATS Power Controller Automatic Transfer Switch Generator

Brand Name:	SMARTGEN
Model Number:	ATS SGQ100A
MOQ:	1
Price:	U$558-588
Packaging Details:	Carton
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS,ISO9001

Warranty:

1 Year

Quality:

100% Original

Stock:

Packing:

Carton

Selling Units:

Single Item

Model Number:

ATS SGQ100A

Supply Ability:

In Stock

Highlight:

car engine control module

diesel generator controller

Electronic Digital Meter

Product Description

WESPC Original ATS SGQ100A ATS Power Controller Automatic Transfer Switch Generator

Size	280220150mm
Weight	4.2kg
Model Number	ATS SGQ100A
Brand Name	Smartgen
After-sales Service Provided	Video Technical Support,Online Support
Markrting Type	Ordinary Product
Warranty	1 year
Stock	Yes

Product Information:

Part No.: ATS SGQ100A
Package includes: 1 pc Power Controller
Genuine ATS SGQ100A ATS Power Controller Automatic Transfer Switch Generator Parts SmartGen
SGQ Automatic Transfer Switch (ATS) is used under conditions of AC660V 50/60Hz or DC250V. It is two-stage PC class type with electromagnetism drive structure, which can make fast load transfer (transfer time ≤80ms) of two power circuits. It can be widely used for national one-class load, for example: high buildings, post, telecommunications, coal mines, ships, industrial assembly lines, health care, military facilities etc. The two power circuits can be grid, auto start genset, storage battery etc.
STRUCTURE AND CHARACTERISTICS :
SGQ Automatic Transfer Switch (ATS) adopts electromagnetic coil drive, electrical and mechanical interlocking structure, main loop structure of two static contacts and one dynamic contact. Dynamic contact applies V type, which ensures two power circuits shall not be short circuit. N type and T type applies double coils; M type applies single coil. Coils only are energized at the time of transfer and this extends the usage life of switch to a great degree. Coil control power can be supplied by master/slave AC or DC power and it is not needed to add another control power. Switch itself has mechanical or electrical close indication, and at the same time it provides volts free auxiliary contact.

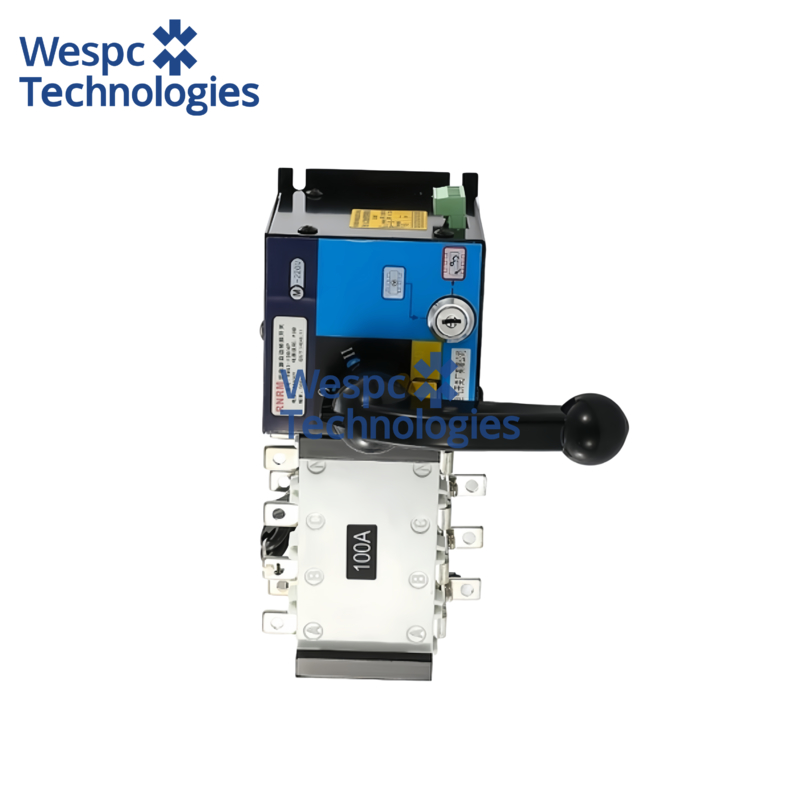

WESPC Original ATS SGQ100A ATS Power Controller Automatic Transfer Switch Generator 0
