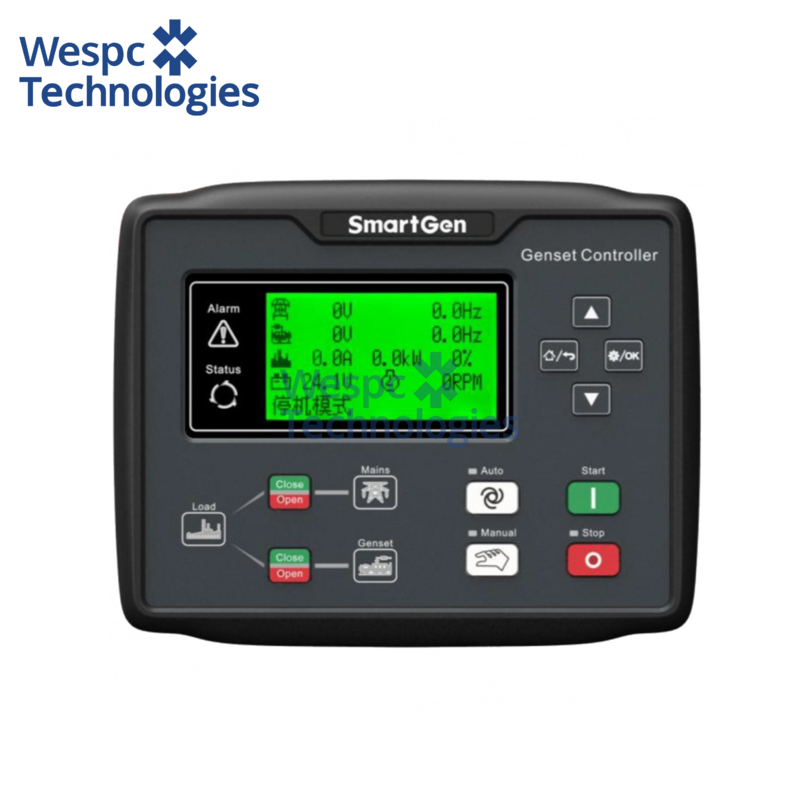

WESPC Original Smartgen HGM6120CAN Diesel Genset AMF Control Module

WESPC Original Smartgen HGM6120CAN Diesel Genset AMF Control Module

Technical Parameters:

Display LCD(132*64)
Operation Panel Silicon Rubber
Language Chinese & English & Others
Digital Input 5
Relay Output 6
Analogue Input 3
AMF ●
AC System 1P2W/2P3W/3P3W/3P4W
Alternator Frequency 50/60Hz
kW/Amp Detecting & Display ●
Monitor Interface RS485
Programmable Interface USB/RS485
CANBUS(1939) ●
RTC & Event Log ●
Scheduled Start Genset ●
Maintenance ●
DC Supply DC(8～35)V
Case Dimensions(mm) 209*166*44
Panel Cutout(mm) 186*141
Operating Temp. (-25～+70)℃

Product Overview:

The HGM6100N series automatic controller combines digital technology, intelligent control, and network capabilities to manage and monitor generator sets. It supports automatic start/stop, data acquisition, alarm protection, and the “three remote” functions—remote control, remote measurement, and remote communication. Featuring an LCD display, the controller offers multilingual interface options including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish, and French, ensuring intuitive and dependable operation.

Built on microprocessor technology, the HGM6100N series enables precise measurement, parameter adjustment, timing, and threshold configuration. All settings can be modified via the front panel or through a PC using a USB or RS485 interface. Its compact design, simplified wiring, and high reliability make it suitable for a wide range of automatic control systems.

Performance & Features:

The HGM6100N series includes six models:

• HGM6110N / 6110NC / 6110CAN: Automatic Start Modules that control generator start/stop via remote signals.

• HGM6120N / 6120NC / 6120CAN: These models add mains AC monitoring and automatic mains/generator switching (AMF), ideal for systems combining utility power and generator sets.

Notes:

• HGM6110NC/6120NC include RS485 ports; HGM6110N/6120N do not.

• HGM6110CAN/6120CAN include CAN ports; other models do not.

• This manual uses HGM6110/6120 as reference examples.

 Key Specifications:

1. 132×64 backlit LCD screen with multilingual interface and push-button control

2. Acrylic panel for enhanced wear and scratch resistance

3. Silicone keys and panel suitable for extreme temperatures

4. RS485 communication port supporting MODBUS protocol for remote functions

5. CANBUS port compatible with J1939 electronic injection systems; enables monitoring of water temperature, oil pressure, RPM, fuel consumption, and control of start/stop and speed settings

6. Compatible with 3P4W, 3P3W, 1P2W, and 2P3W (120V/240V), 50Hz/60Hz AC systems

7. Measures and displays 3-phase voltage, current, frequency, and power parameters for both mains and generator

8. Mains protection: over/under voltage, phase loss; Generator protection: over/under voltage, frequency, current, and power

9. Accurate engine parameter monitoring and display

10. Control and protection: automatic start/stop, load transfer (ATS), fault indication and protection

11. Relay outputs for ETS, idle control, preheat, and speed adjustment

12. Parameter settings stored in internal FLASH memory; configurable via panel or PC (USB/RS485)

13. Supports multiple temperature, pressure, and fuel level sensors with user-defined parameters

14. Multiple crank disconnect conditions selectable (speed sensor, oil pressure, generator)

15. Emergency start capability

16. Automatic flywheel tooth count detection

17. Power supply range: 8–35VDC, compatible with various battery voltages

18. Digital parameter modulation replaces traditional potentiometers for improved reliability

19. Maintenance scheduling by date or runtime, with configurable alerts or shutdowns

20. Event logging, real-time clock, and scheduled pump start/stop (daily/weekly/monthly, with or without load)

21. Rubber gasket between housing and screen for IP55 waterproof rating

22. Metal clips for secure mounting

23. Modular design with flame-retardant ABS casing, embedded installation, compact structure, and easy setup
